26awg 28awg Kynar Insulated Wire Specific Gravity 1 75 For Wiring Back Panels - China

UL1423 Kynar (PVDF) insulated copper conductor wire 26AWG to 36AWG Main Characteristic: UL 1423 PVDF has good high dielectric strength and great mechanical properties over a broad range of temperatures, allowing for a thin wall insulation.

PVDF is also resistant to a variety of chemicals including most inorganic acids, bases, alcohols, halogenated solvents, organic acids, aliphatic and aromatic hydrocarbons.

It has a better cut through resistance than PVC and is a pure and clean polymer unlike PVC.

Specification: - - - - Trade No.

| AWG | Conductor(mm) | Insulation(mm) | Resistance at 20C /km | Package KFt/m | No.

/mm | Diameter (mm) | Insulation Thickness | Over Diameter (mm) | UL1423 | 36# | 1/0.127 | 0.1270.01 | 0.060 | 0.250.01 | / | 20/6100 | UL1423 | 34# | 1/0.160 | 0.1600.01 | 0.070 | 0.300.02 | 920.80 | 20/6100 | UL1423 | 32# | 1/0.203 | 0.2030.01 | 0.070 | 0.320.02 | 595.00 | 20/6100 | UL1423 | 30# | 1/0.254 | 0.2540.01 | 0.120 | 0.480.02 | 372.00 | 20/6100 | UL1423 | 28# | 1/0.320 | 0.3200.01 | 0.140 | 0.600.02 | 232.00 | 20/6100 | UL1423 | 26# | 1/0.410 | 0.4100.01 | 0.150 | 0.710.02 | 120.00 | 10/3050 | - - - - Insulation Properties: - - - - Characteristics | Value | Characteristics | Value | Specific Gravity | 1.75 | Hardness Durometer Shore D | 75-80 | Tensile Strength @yeild 75(p.s.i) | 5200 | Flexural Modulus @ 75(p.s.i) | 156-260 103 | Elongation @ Break (%) | 50-250 | Water Absorbtion(%) | 04 | Dielectric constant@ 60 Cycle | 8.40 | Service Temperature | 275(135) | Dielectric Constant volts/mil | 950 | Flamability | V-0 | - - - - Application and usage field: PVDF (Kynar) wire can be used for wiring back panels, power supply and test fixtures for the printed circuit board market, this product has been used for years in the medical wire market, fabrication sensors for temperature and measurement applications.

Product construction: 105C, no voltage rated, Solid silver plated oxygen free copper conductor, kynar(PVDF) insulated.

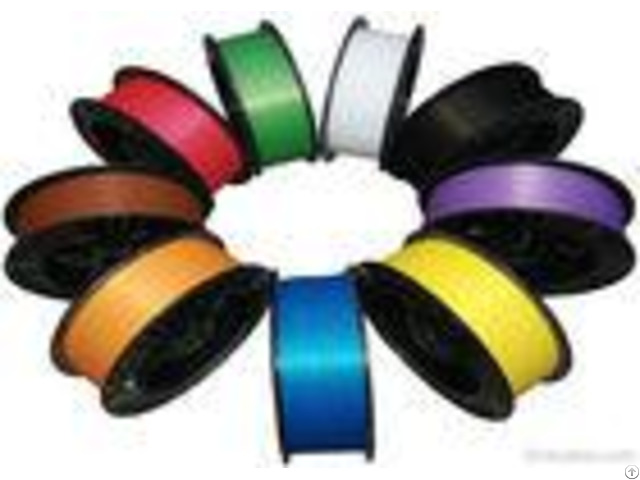

Product image:
