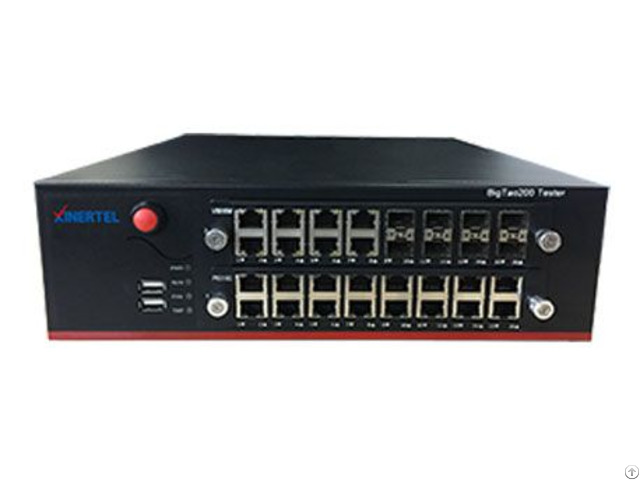

BigTao Series Ethernet Tester

Comprehensive Ethernet Tester

Network Communications Tester

High performance unified platform delivering comprehensive testing solutions for IP forwarding devices in each stage of R & D, experiment, quality control, performance monitoring and production line test.

High performance unified platform delivering comprehensive testing solutions for IP forwarding devices in each stage of R & D, experiment, quality control, performance monitoring and production line test.

With support of high port density 100G, 40G, 10G and 10/100/1000M load modules BigTao can deliver the best cost effective multilayer protocol testing and emulation solutions.

Full IPv4 and IPv6 protocol stack support, per port simulate hundreds of thousands of interfaces and tens of millions of realistic connections.

KEY FEATURES

Support QSFP28, QSFP+, SFP+, SFP, RJ45 interfaces on 100G, 40, 10G and 10/100/1000Mbps

Integrated PC running Windows XP for separately operating

Multi-user login with easy remote access via a network

Daisy chain of up to 100 chassis with all ports synchronization

Graphical user interface for configuration, data capture and real-time analysis

Support TCL for automating test control

C++ API for customizing test applications

Test suit based on RFC2544, RFC2889 and RFC3918

CHASSIS SPECIFICATIONS

Model BigTao200 BigTao220 BigTao6000

Slots 2 2 6

Power AC 110~240V

CPU Intel dual-core HF CPU Intel Atom E3845 CPU Intel dual-core HF CPU

System Control Reset button, Power switch

Cooling Devices 2 System Fans and 1 Power Fan 4 System Fans 2 System Fans and 1 Power Fan

Status Indicators Power, Hard disk Power, Fan, Temp, Link LCD Screen Power, Hard disk

Temperature 5℃-40℃

Humidity 20-85%, RH

Load Module Available P/V6000 Series, P/V8000 Series, P/V9000 Series, P/V9600 Series

Size 310mm×280mm ×89mm 371mm×424mm ×107mm 440mm×436mm ×133mm

Weight 3.5kg 5kg 12kg

MODULE CLASSIFICATION

V Series Test Modules

High performance and full-specification Ethernet test modules running on BigTao series platform.

Supporting full functions of all Ethernet technology test needs.

Classified by the port rate:

V6000 series support 10/100/1000 Mbps per port

V8000 series support 10 Gbps

V9000 series support 40 Gbps

V9600 series support 100 Gbps

P Series Test Modules

P series test modules deliver network testing functionality on BigTao series test platform with high density.

P series are specialized developed for comprehensive and automated testing of networking devices on production line.
