Heat Resistant Flexible Electrical Wire Micro Coaxial Silver Pfa Insulated Cable - China
price: check with company for price
Heat resistant UL10005 micro coaxial silver or tin plated tin-copper alloy conductor PFA insulated cable Main description: (1) Impedance: 50 (2)Rated temperature: -80 ~ + 150/200 (3) rated voltage: 300V (4) Silver or tin plated tin-copper alloy conductor (5) Lead free Teflon PFA insulation and jacket (6) Silver or tin plated tin-copper alloy spiral shield Product feature: Micro coaxial cable has excellent thermal stability and mechanical wear resistance and electrical insulation properties, resistant to acid, corrosion resistance, fire burn, the oxygen index, halogen, not aging.
Application field: UL10005 micro coaxial cable widely used in aviation, metallurgy, petroleum, electronic equipment, instruments, household appliances, transformers, electrical motor, wearable product, smart clothing, E-textile, ect.
Specifications: - - - - | Conductor | | Insulation | Braid shield | Jacket | AWG | Material | No.

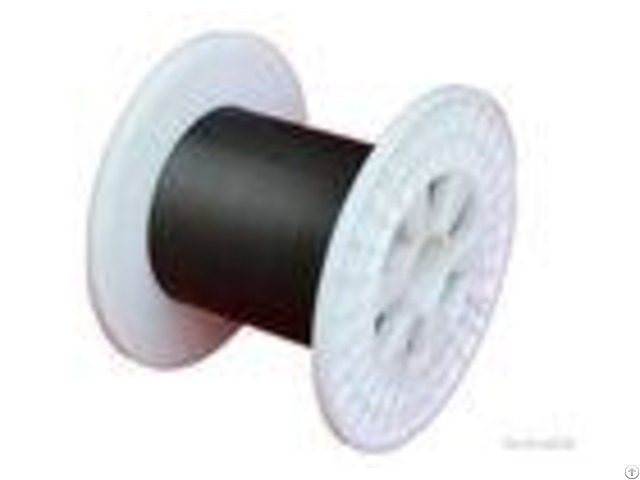

/mm/Diameter | Material/Diameter/Materia l | Construction/Material/Dia meter | 46 | SPTCA | 7/0.016 | 0.048 | PFA | 0.12 | SPTCA | 0.17 | PFA | 0.22 | 44 | SPTCA | 7/0.02 | 0.06 | PFA | 0.13 | SPTCA | 0.17 | PFA | 0.23 | 44 | SPTCA | 7/0.02 | 0.06 | PFA | 0.15 | SPTCA | 0.21 | PFA | 0.23 | 44 | SPTCA | 7/0.02 | 0.06 | PFA | 0.15 | TPTCA | 0.21 | PFA | 0.26 | 42 | SPTCA | 7/0.025 | 0.075 | PFA | 0.17 | SPTCA | 0.23 | PFA | 0.28 | 42 | SPTCA | 7/0.025 | 0.075 | PFA | 0.17 | TPTCA | 0.23 | PFA | 0.28 | 42 | SPTCA | 7/0.025 | 0.075 | PFA | 0.18 | TPTCA | 0.24 | PFA | 0.31 | 40 | SPTCA | 7/0.03 | 0.09 | PFA | 0.24 | TPTCA | 0.30 | PFA | 0.35 | 40 | TPTCA | 7/0.03 | 0.09 | PFA | 0.24 | TPTCA | 0.30 | PFA | 0.35 | 36 | SPTCA | 7/0.05 | 0.15 | PFA | 0.27 | TPTCA | 0.33 | PFA | 0.38 | 36 | TPTCA | 7/0.05 | 0.15 | PFA | 0.27 | TPTCA | 0.33 | PFA | 0.38 | - - - - SPTCA: Silver plated Tin-copper alloy TPTCA: Tin plated Tin-copper alloy Construction diagram: Product image:
Company Contact:
- Posted By: Fort Electronics Company
- Phone: 86-0769-85235539
- Address: No.3 Jiedong Road Humen Town Dongguan City, Guangdong Province, China, Dongguan , Guangdong , China
- Email:
Published date: January 9, 2018
- Business Description: Founded in 2004, Fort offers a highly alternative to your current cable supplier, with quality, services, capacity and innovation.
As a manufacturer with offices and factory in Dongguan, the heart of the manufacturing industry in China, Fort electronics is facing to the worldwide.
