High Flexible Pvc Electrical Cable Stranded Tinned Copper Wire 20awg 22awg - China

High flexible UL1015 single PVC insulated Solid or stranded tinned copper wire 20AWG, 22AWG Main description: Flame, chemical and moisture resistant PVC insulation, Solid/ stranded bare/ tin coated copper Rating voltage: 600V Rating temperature: -40c to +80c Conductor: tinned or bare copper Insulation: pvc Colors: black-brown-red-orange-ye llow-green-blue-purple-gr ay-white-transparent-yell ow/green etc.

Product characteristic: flexible, convinience to assemble, cold resistance, stable performance, UL758 and UL1581, Rohs compliance.

Application field: Used as internal wiring for appliances and electrical and electronic equipment.

Also used for wiring and cable assemblies in data and electronic equipment.

PVC applications include motors, transformers, fluorescent ballasts and fixtures, switchboards, panels, controls, rectifiers and electronic circuits.

UL1015 introduce: UL1015 wire is constructed single or stranded tinned or bare copper and lead-free pvc insulation.

It resists acid, alkali, moisture, mould proofing.

The insulation lay is easy to peel and cut off.

With the rated voltage 600v and the rated temperature 80, 90 or 105 - this products meet the standard of UL758, UL1581 - UL1015 is suitable for internal wiring of computers and electric equipment exposed to the oil with the temperature not exceeding 60 or 80 - PVC material feature The resistance to flames, oils and chemicals make pvc insulated cables ideal for a variety of different applications including low power and controlled uses.

Excellent flexibility properties, good resistance to temperature fluctuations and environmental conditions along with comparative low costs to other materials make pvc cables the preferred choice for cable insulation and jackets.

Specification : - - - - Conductor | Insulation | Electrical Characteristic | Packing | AWG | Conductor construction (NO.

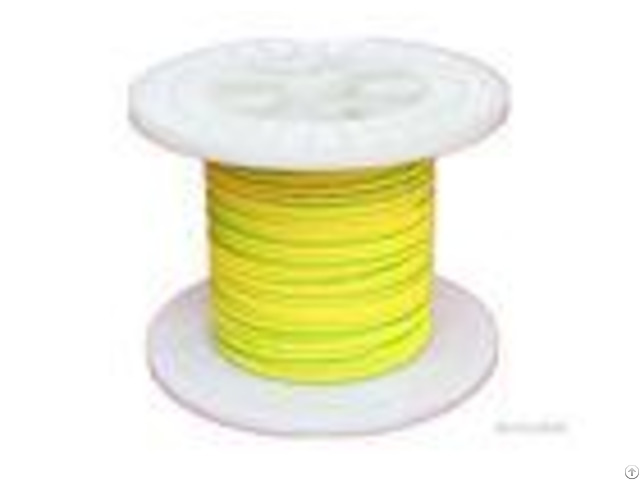

mm) | Diameter (mm) | Insulation Thickness (mm) | Over Diameter (mm) | Conductor Resistance 20c (ohm/km) | Permissible ampacity (20c - AMR) | Mt/coils | 30 | 1 0.254 | 0.25 | 0.76 | 1.77 | 361.0 | 0.64 | 610 | 28 | 1 0.320 | 0.31 | 0.76 | 1.83 | 227.0 | 1.01 | 610 | 26 | 7 0.160 | 0.49 | 0.76 | 2.01 | 143.0 | 1.61 | 305 | 24 | 11 0.160 | 0.61 | 0.76 | 2.13 | 89.3 | 2.57 | 305 | 22 | 17 0.160 | 0.76 | 0.76 | 2.28 | 56.4 | 4.36 | 305 | 20 | 21 0.180 | 0.95 | 0.76 | 2.47 | 35.2 | 6.94 | 305 | 18 | 34 0.180 | 1.21 | 0.76 | 2.73 | 22.2 | 11.01 | 305 | 16 | 26 0.254 | 1.50 | 0.76 | 3.03 | 14.0 | 17.52 | 200 | 14 | 41 0.254 | 1.88 | 0.76 | 3.40 | 8.8 | 27.84 | 200 | 12 | 65 0.254 | 2.37 | 0.76 | 3.89 | 5.5 | 44.20 | 200 | 10 | 105 0.254 | 3.00 | 0.76 | 4.52 | 3.5 | 70.38 | 100 | - - - - Construction diagram Product image:
