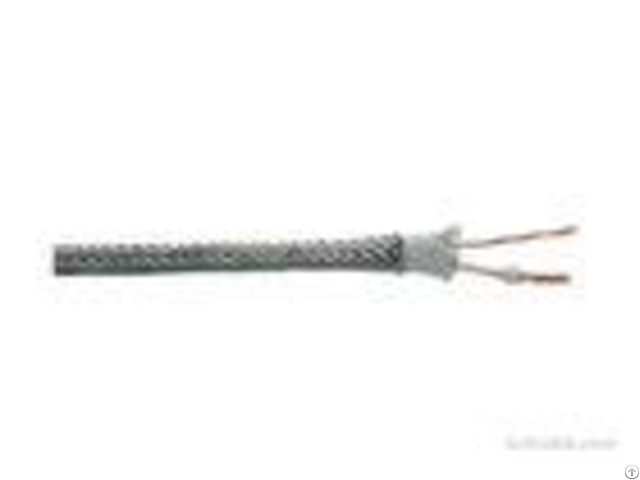

High Temp E Type Thermocouple Extension Wire Fiberglass Braid Round Shaped - China
price: check with company for price
High temperature E type fiberglass braid insulated thermocouple extension wire Construction: - - - - Insulation: | Fiberglass | | Min.
bending radius: | 7.5xd | Stranding | Core together or separately | | Insulation temperature: | -25-+180 | Shape | Round | | Insulation resistance: | >1MxkM | | | | Fire performance: | Flame retardant and self-extinguishing IEC60330-1-2+EN60332-1-2 | | | | Certificate: | Approved by RoHS directive of the European Union | | | | Chemical resistance: | Very good against to moisture, acid and oil | - - - - - - - - Item No.
| Conductor Construction | Positive(EP) | Negative(EN) | Outer diameter(mm) | Cable weight Kg/100M | 047610 | 2x0.22mm2(7x0.2mm) | Ni: Cr | constantan | 3.3 | 2.1 | 047611 | 2x0.50mm2(16x0.2mm) | Ni: Cr | constantan | 4.1 | 3.9 | 047612 | 2x1.00mm2(32x0.2mm) | Ni: Cr | constantan | 4.9 | 5.2 | - - - - Thermocouple extension wire application: The function of the thermocouple to compensate the conductor is to extend the cold end of the thermal electrode, which is connected with the display instrument to form the temperature measurement system.
The products are mainly used in various temperature measuring devices, and have been widely used in oil, chemical, metallurgy, power and other departments.
Company Contact:
- Posted By: Fort Electronics Company
- Phone: 86-0769-85235539
- Address: No.3 Jiedong Road Humen Town Dongguan City, Guangdong Province, China, Dongguan , Guangdong , China
- Email:
Published date: January 9, 2018
- Business Description: Founded in 2004, Fort offers a highly alternative to your current cable supplier, with quality, services, capacity and innovation.
As a manufacturer with offices and factory in Dongguan, the heart of the manufacturing industry in China, Fort electronics is facing to the worldwide.
