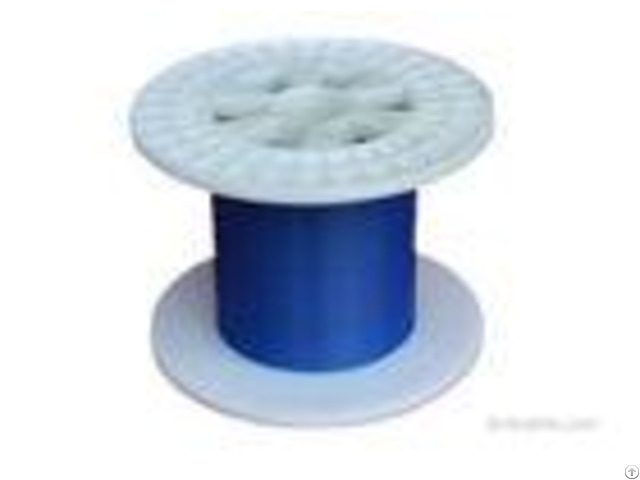

High Temperature Resistance Thin Insulated Wire Teflon Coating For Household Appliances - China

High temperature resistance UL1577 FEP insulation silver, nickel or tin plated copper wire 16AWG to 30AWG UL1577 teflon insulated wire is mainly commonly used in electrical, chemical, and medical application.

Customized with single conductor and FEP insulation, the wires have excellent resistance to heat, acid, and moisture.

The rated temperature is up to 200 Product features: Fluoroplastic high temperature line is characterized by high temperature and flame retardant, but also has excellent corrosion resistance, strong acid and alkali; with excellent electrical insulation properties of fluorine plastic is also a major feature of high temperature resistance, high pressure resistance, less high frequency loss, Insulation resistance large; aging resistance, long service life.

Rating: 300v, 200 Conductor: silver, nickel or tin plated copper Insulation: FEP Flammability: VW-1 Product application field: Fluorine plastic high temperature line is widely used in household appliances, lighting, electrical appliances, instrumentation, electrical, industrial equipment and other high temperature environment.

Among them, household appliances can be used for air conditioning, microwave ovens, electronic disinfection cabinet, rice cookers, electronic thermos, electric heaters, electric ovens, electric wok and other internal wiring; the electronics industry, can be used for temperature compensation wire,, High temperature heating wire, anti-aging wire and flame retardant wire.

they are the same with the inner fixed wires for home electric appliance, lighting equipment, mechanical electric machines.

Specification: - - - - conductor | insulation | electrical characteristic | packing | AWG | conductor construction (NO.

mm) | diameter (mm) | insulation thickness (mm) | over diameter (mm) | conductor resistance 20 c (ohm/km) | permissible Ampacity (20c-AMR) | mt/coils | 30 | 1 0.254 | 0.254 | 0.31 | 0.87 | 361.00 | 0.66 | 610 | 28 | 1 0.320 | 0.32 | 0.31 | 0.94 | 227.00 | 1.06 | 610 | 26 | 7 0.160 | 0.48 | 0.31 | 1.11 | 143.00 | 1.68 | 610 | 19 0.100 | 0.50 | 0.31 | 1.12 | 143.00 | 1.68 | 610 | 24 | 7 0.203 | 0.61 | 0.31 | 1.23 | 89.30 | 26.90 | 305 | 19 0.120 | 0.60 | 0.31 | 1.22 | 89.30 | 26.90 | 305 | 22 | 7 0.254 | 0.76 | 0.31 | 1.38 | 56.40 | 4.26 | 305 | 19 0.160 | 0.80 | 0.31 | 1.42 | 56.40 | 4.26 | 305 | 20 | 7 0.310 | 0.93 | 0.31 | 1.55 | 35.20 | 6.82 | 305 | 19 0.190 | 0.96 | 0.31 | 1.58 | 35.20 | 6.82 | 305 | 18 | 7 0.390 | 1.17 | 0.31 | 1.81 | 22.20 | 10.81 | 305 | 19 0.235 | 1.18 | 0.31 | 1.80 | 22.20 | 10.81 | 305 | 16 | 7 0.500 | 1.50 | 0.31 | 2.11 | 14.00 | 17.14 | 305 | 19 0.300 | 1.51 | 0.31 | 2.13 | 14.00 | 17.14 | 305 | - - - - Construction diagram:
