P9000 Series Test Modules

Network Communications Tester

Comprehensive Ethernet Tester

P9000 Series Test Modules deliver professional network testing functionality on BigTao series test platform with high performance and availability.

P9000 series are specialized developed for comprehensive and automated testing of networking devices on production line, providing the best cost-effective testing solutions on 2nd Layer protocol testing

P9000 Series Test Modules deliver professional network testing functionality on BigTao series test platform with high performance and availability.

P9000 series are specialized developed for comprehensive and automated testing of networking devices on production line, providing the best cost-effective testing solutions on 2nd Layer protocol testing and analyzing.

P9000 series provide low cost testing solutions on BigTao platforms and meet test requirements of all kinds of networking devices in each stage of R & D, experiment, quality control, performance monitoring and production line.

With support of the basic test application--TeleExplorer , P9000 series provide a full IPv4/IPv6 stack.

Each port can generate 64 streams with independent configurations and statistics.

With support of the specialized automation test application--TeleATT, P9000 series deliver a fully automated testing solution which support asynchronous test for multiple DUTs.

P9000 series provide the test mode of aggregation, eachother and loopback with a variety of frame patterns such as Random length, Alternate length, and Fixed length.

P9000 series are supported in high performance chassis of BigTao200, BigTao6000 and BigTao12000, providing accurate chassis-to-chassis synchronization.

KEY FEATURES

Support QSFP+ on 40 Gbps

Support line-rate traffic generation and analysis

Support stream template as layer2, ipv4, ipv6, TCP, UDP, ICMP, IGMP and ARP.



Support customized data packet generation

Statistics results can be displayed in the form of table and graph

Built-in PC running Windows XP for separately operating

Multi-user login with easy remote access via a network

SPECIFICATION LIST

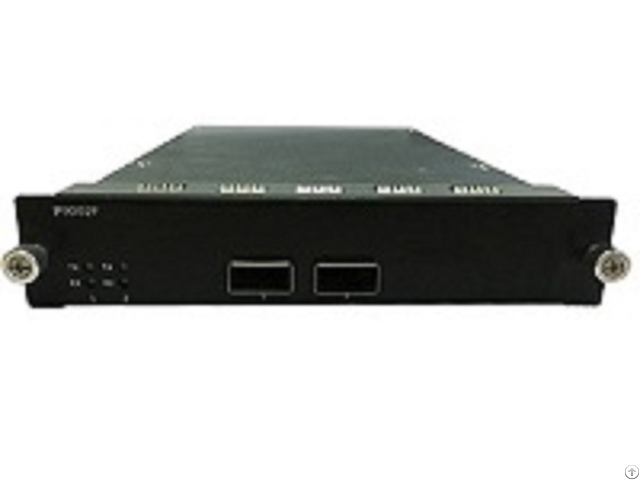

Model P9002F

Port Number 2 x 100G Port

Port Rate 40G QSFP+

Physical Status Indicators: Tx/Rx

Weight: 0.5kg

Size: 271mm x 35.5mm x 180mm

Peak power requirement: 60W Max

Traffic Generation/ Traffic Statistics Efficient automated test software brings the revolution of production line test

Various test modes and solutions bring users an easy One-key Test

High density aggregation test with up to 64 different streams per port

Accurate data rate control based on port and stream

Stream generation with user-defined data

Stream generation of various templates

Random length frame generation

Real-time monitor of streams

Multiple checksum domains

traffic statistics with various measurements

traffic statistics in forms of table and graph

Data frame and control frame capture

Frame capture based on filter templates

Automatic analysis of captured packets

Transmitting Mode Continuous, Single burst, Multi burst, Time burst and Serialized

Software Support TeleExplorer, TeleATT——automation test application

Others Easy-to-use graphical user interface

Support C++, C, C# and TCL API for customizing tests

Module Name Ports Per Module Connecter Type Single Rate

P9002F 2 40G QSFP+ Fiber 40 Gbps

P9602F 2 100G QSFP28 Fiber 100 Gbps
