Rated 300v Pvc Insulated Resistance Wire With Comparative Low Costs - China

300V voltage UL 1007 PVC insulated stranded or solid tinned or bare copper wire PVC feature: The resistance to flames, oils and chemicals make pvc insulated cables ideal for a variety of different applications including low power and controlled uses.

Excellent flexibility properties, good resistance to temperature fluctuations and environmental conditions along with comparative low costs to other materials make pvc cables the preferred choice for cable insulation and jackets.

PVC insulated wire applications include motors, transformers, fluorescent ballasts and fixtures, switchboards, panels, controls, rectifiers and electronic circuits.

UL1007 parameter: Insulation: premium-grade, color-code pvc Temperature Range: -40C to +80C Voltage Rating: 300 VAC Conductor: stranded or solid tin or bare copper Compliances: Designed to meet UL VW-1 vertical wire flame test; Rohs compliant Application: Internal wiring of electrical and electronic equipment, Internal wiring of panels and meters, Point-to-point wiring UL1007 feature: UL1007 is made with 30 to 16awg single or stranded bare or tinned copper as conductor and its insulation is lead-free pvc material, which has good flame retardance, resistance to chemical corrosion, ageing and oil, mould proofing and so on.

Meeting the standard of UL62, UL1581, our product has a rated temperature 80 and a rated voltage of 300v.

It can be used for internal wiring and electric equipment with temperature no more than 40 or 80 - Specification: - - - - Conductor | Insulation | Electrical Characteristic | Packing | AWG | Conductor construction (NO.

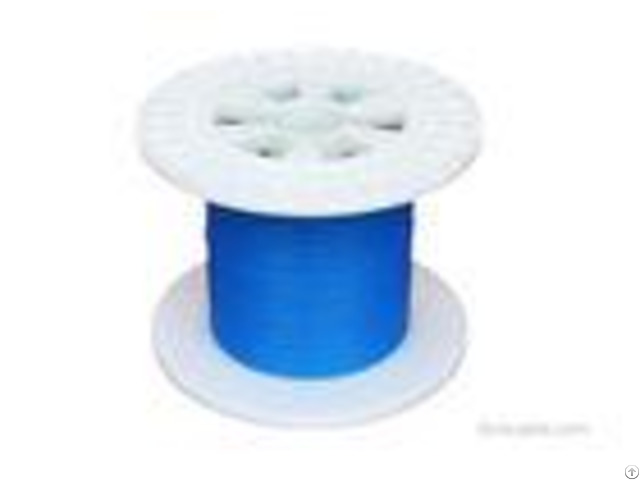

mm) | Diameter (mm) | Insulation Thickness (mm) | Over Diameter (mm) | Conductor Resistance 20c (ohm/km) | Permissible ampacity (20c-AMR) | Mt/coils | 30 | 7 0.100 | 0.30 | 0.38 | 1.06 | 361.0 | 0.64 | 610 | 28 | 7 0.127 | 0.37 | 0.38 | 1.13 | 227.0 | 1.01 | 610 | 26 | 7 0.160 | 0.49 | 0.38 | 1.25 | 143.0 | 1.61 | 610 | 24 | 11 0.160 | 0.61 | 0.38 | 1.37 | 89.3 | 2.57 | 610 | 22 | 17 0.160 | 0.76 | 0.38 | 1.52 | 56.4 | 4.36 | 610 | 20 | 21 0.180 | 0.95 | 0.38 | 1.71 | 35.2 | 6.94 | 610 | 18 | 34 0.180 | 1.21 | 0.38 | 1.97 | 22.2 | 11.01 | 610 | 16 | 26 0.254 | 1.50 | 0.38 | 2.26 | 14.0 | 17.52 | 610 | 30 | 1 0.254 | 0.25 | 0.38 | 1.01 | 361.0 | 0.64 | 610 | 28 | 1 0.320 | 0.32 | 0.38 | 1.08 | 227.0 | 1.01 | 610 | 26 | 1 0.404 | 0.40 | 0.38 | 1.16 | 143.0 | 1.61 | 610 | 24 | 1 0.511 | 0.50 | 0.38 | 1.26 | 89.3 | 2.57 | 610 | 22 | 1 0.643 | 0.60 | 0.38 | 1.36 | 56.4 | 4.36 | 610 | 20 | 1 0.813 | 0.80 | 0.38 | 1.56 | 35.2 | 6.94 | 610 | 18 | 1 1.024 | 1.00 | 0.38 | 1.76 | 22.2 | 11.01 | 610 | 16 | 1 1.290 | 1.29 | 0.38 | 2.05 | 14.0 | 17.52 | 305 | - - - - Construction photo:
