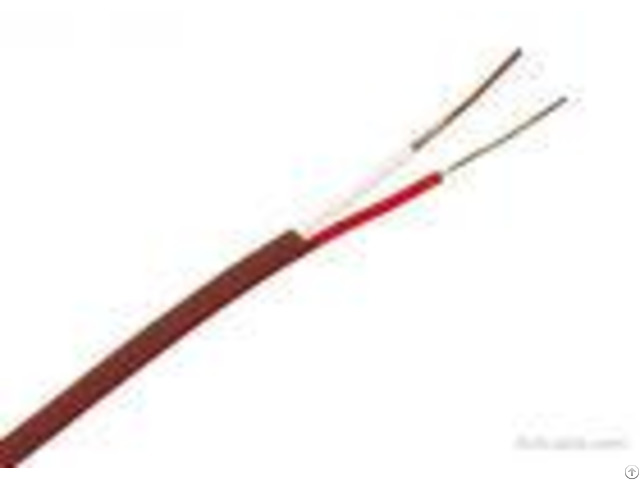

Temp Checking Type T Thermocouple Wire Self Extinguishing For Chemical Field - China
price: check with company for price
Temperature check T type FEP Insulation thermocouple extension wire for sensor Construction: - - - - Insulation: | FEP | | Min.
bending radius: | 7.5xd | Stranding | 2 Cores together | | Insulation temperature: | -55-+180 | Shape | Round | | Insulation resistance: | >1MxkM | | | | Fire performance: | No flame propagation acc.
to IEC60332+EN60332 Cat.
C resp.
D Flame retardant and self-extinguishing IEC60330-1-2+EN60332-1-2 | | | | Certificate: | Approved by RoHS directive of the European Union | | | | Chemical resistance: | Very good against to moisture, acid and oil | - - - - - - - - Item No.
| Conductor Construction | Positive(TP) | Negative(TN) | Outer diameter(mm) | Cable weight Kg/100M | 047510 | 2x0.22mm2(7x0.2mm) | Cu | constantan | 3.3 | 2.1 | 047511 | 2x0.50mm2(16x0.2mm) | Cu | constantan | 4.1 | 3.9 | 047512 | 2x1.00mm2(32x0.2mm) | Cu | constantan | 4.9 | 5.2 | - - - - Thermocouple extension wire application field: The function of the thermocouple to compensate the conductor is to extend the cold end of the thermal electrode, which is connected with the display instrument to form the temperature measurement system.
The products are mainly used in various temperature measuring devices, and have been widely used in oil, chemical, metallurgy, power and other departments
Company Contact:
- Posted By: Fort Electronics Company
- Phone: 86-0769-85235539
- Address: No.3 Jiedong Road Humen Town Dongguan City, Guangdong Province, China, Dongguan , Guangdong , China
- Email:
Published date: January 9, 2018
- Business Description: Founded in 2004, Fort offers a highly alternative to your current cable supplier, with quality, services, capacity and innovation.
As a manufacturer with offices and factory in Dongguan, the heart of the manufacturing industry in China, Fort electronics is facing to the worldwide.
