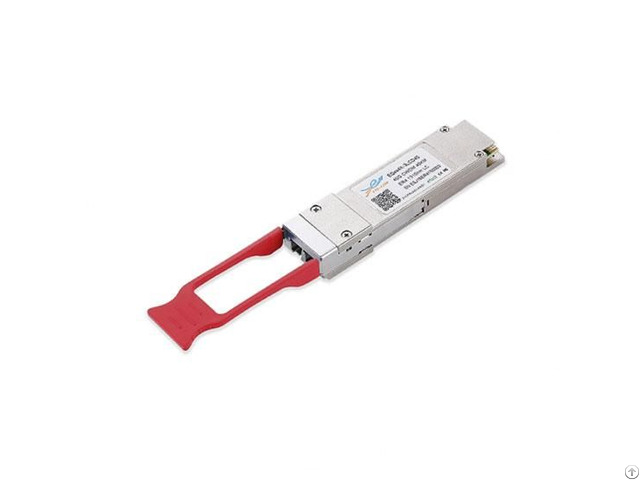

40G QSFP+ ER4 40KM LC Optical Transceiver

Product Model: EQxx4X-3LCD40

Data Rate: 40G

Wavelength: CWDM

Distance: 40km

Connector: LC

Fiber Type: SM

DDM: YES

Place of origin: Made in China

Shipping Port: ShenZhen

Package type: Individual package or 10pc/package Features

1 - Transmission data rate up to 11.2Gbps per channel

2 - QSFP+ MSA compliant

3 - Compliant to IEEE 802.3ba specification for 40GBASE-ER4 links

4.4 CWDM un-cooled DFB lasers, using ITU G.

694.2 wavelength grid at 1271, 1291, 1311 and 1331nm

5 - High Sensitivity APD-TIA with optical DEMUX

6 - Up to 40km reach over standard single mode fiber

7 - Hot pluggable electrical interface

8 - Operating case temperature 0°C to +70°C

9.3.3V power supply

10 - RoHS 6 compliant(lead free)

11 - ROHS Compliance.

Description

This product is a transceiver module designed for 40km optical communication applications.

The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard.

The module converts 4 inputs channels (4ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission.

Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2 - It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface.

To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA).

It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Applications

1 - Gigabit Ethernet/Fiber Channel/Switch to Switch interface;

2 - Switched backplane applications/Router/Serve r interface;

3 - Other optical transmission systems
