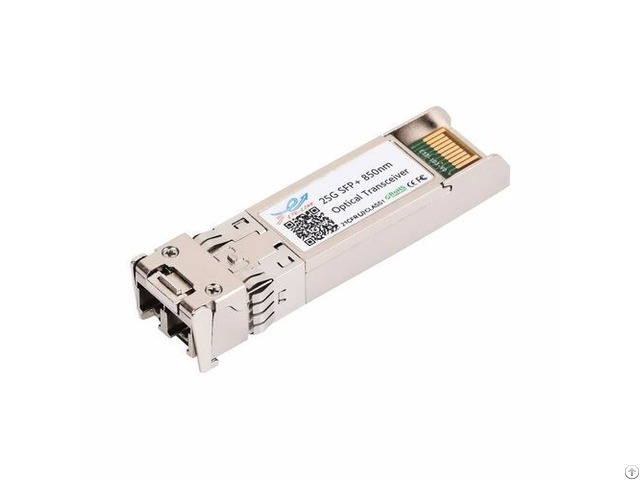

Cisco Huawei 25g Sfp Sr 850nm 300m Transceiver - China

Cisco HUAWEI 25G SFP+ SR 850NM 300M TRANSCEIVER ITEM NO: ESP852A-3LCD03

DATA RATE: 25G

WAVE LENGTH: 850nm

DISTANCE: 300M

CONNECTOR: LC

FIRST: MM

DDM: YES

PRODUCT ORIGIN: China

SHIPPING PORT: ShenZhen Features

Ø Supports 25Gbps data rate

Ø 70m on OM3 MMF and 100m on OM4 MMF

Ø 850nm VCSEL laser and PIN photo-detector

Ø Inter CDR on both Transmitter and Receiver channel

Ø Duplex LC receptacle

Ø Single 3.3V power supply

Ø Power dissipation < 1W

Ø DDM functions are available via the I2C interface

Ø RoHS-6 compliant

Ø Commercial case temperature range: 0°C to 70°C

Applications Applications

Ø 25GBASE-SR Ethernet

Product description

The SFP28 SR is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications.

It is a high performance module for short-range data communication and interconnects applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

The electrical interface uses a 20 contact edge type connector.

The optical interface uses duplex LC receptacle.

This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
