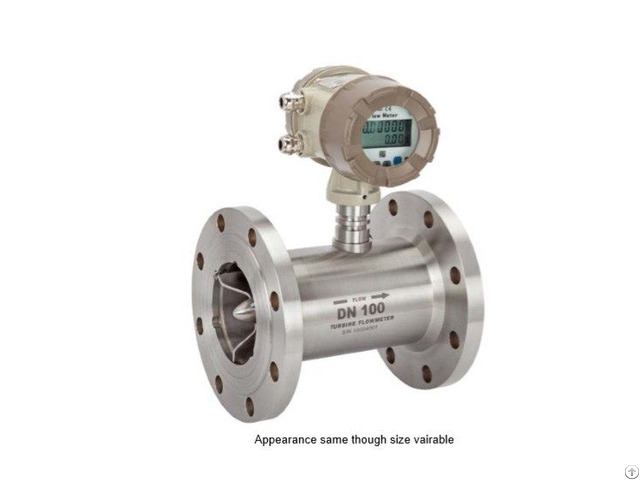

Liquid Turbine Flow Meter - China

This manual will assist you in installing, using and maintaining your flow meter.

It is your responsibility to make sure that all operators have access to adequate instructions about safe operating and maintenance procedure.

Operating Principle: Liquid flows through the turbine housing causing an internal rotor to spin.

As the rotor spins, an electrical signal is generated in the pickup coil.

This signal is converted into engineering units (liters, cubic meters, gallons etc.

) on the local display where is applicable.

Optional accessory modules can be used to export the signal to other equipment.

Upon receipt, examine your meter for visible damage.

The turbine is a precision measuring instrument and should be handled carefully.

Remove the protective plugs and caps for a thorough inspection.

If any items are damaged or missing, contact us.

Make sure the turbine flow model meets your specific needs.

For your future reference, it might be useful to record this information on nameplate in the manual in case it becomes unreadable on the turbine.

Refer to the nameplate for your customized product’s specification.

.

Cautions for Installation turbine type flow meter

4.1 Mounting Positions

• Pipes must be fully filled with liquids.

It is essential that pipes remain fully filled at all times, otherwise flow rate indications may be affected and measurement errors may be caused
