Mini Through Holes Slip Ring Vsr Tc20 12 - China

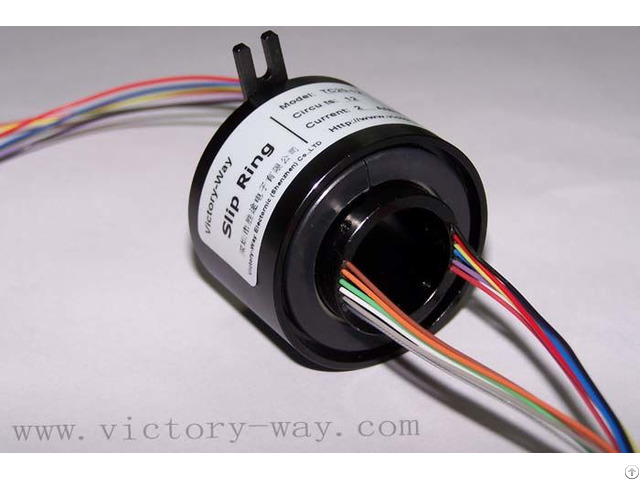

TC20 series slip ring is a micro slip ring, of which there is a 20 mm through-bore in the center of the shaft.

It has the advantages of capsule & through bores slip ring.

This design features long life & low cost, and fiber Precious metal brush contact technology realizes ultimate performance in many challenging applications.

With aluminum alloy body, double precision roller bearings provide smoother running, lower torque and lower electrical noise.

It is suitable for transferring signal & low power.

A)Feature:

* 20mm through-bore, provide 1~12 ways;

* Compact miniature design, small size, fit for harsh space;

* Multi circuits/channels design can delivr both power & signal at the same time;

* Hybrid FORJ or High Frequency rotary joints;

* Aluminium alloy shaft and body for excellent shielding.

B)Specification:

* Speed: 300 RPM

* Voltage: 240 VAC/DC

* Working Temp: -30 ℃～+80 ℃

* Current: 2A/way

* Dielectric Strength: 600 V DC @ 50Hz

* Insulation Resistance: >=500 MΩ @ 600 V AC

* Electrical Noise: less than 60 mΩ

* Body material: Aluminium alloy

C)Typical Application:

* Rotary tables, test equipment;

* Robots, processing equipment and rotary sensors;

* Exhibit / display equipment;

* Medical equipment.

D) Option:

* Higher voltage and current capacity;

* Higher speed;

* Wider range of temperature;

* Higher protection class;

* Style of exits for lead wires;

* Flange for installation for option.

Company Contact:

• Posted By: Victory-way Electronic(Shenzhen) Co., Ltd.

• Phone: 86-13659167197

• Address: BLD.D,Hejing Industrial Park,Heping Fuyong,Baoan District Shenzhen,China, Shenzhen , GuangDong , China

• Email:

• Business Description: Victory-way Electronic(Shenzhen) Co., Ltd. is a high-technology company which focuses on R&D and production of industrial electrical slip ring, created by senior engineers with many years of conductive slip ring application and development experience.

  So we can learn the demands of customers better and provide the best solution in the shortest time to help customers shorten development time.

  We design, develop and produce fiber composite (FORJ), electrical liquid mixture, high-frequency combinations, explosion-proof slip rings, waveguide combination of slip rings, etc.

  and we can provide the electrical contact devices in varieties of working conditions, from the underwater environment to the high altitudes, from the alpine zone to the high temperature environment, and even for the explosive condition.

  At present, our products are applied in the fields of security, industrial automation, military, environmental protection and so on.

  Excellent performance and reliable quality make our conductive slip ring exported to developed industrial countries, such as Japan, USA, Europe etc.

  Our products are very popular with customers and we are honored to be privileged the only supplier of slip ring for some customers of the high reliability requirement.

  We will continue to work hard to provide high quality conductive slip ring and the best solutions to customers.
