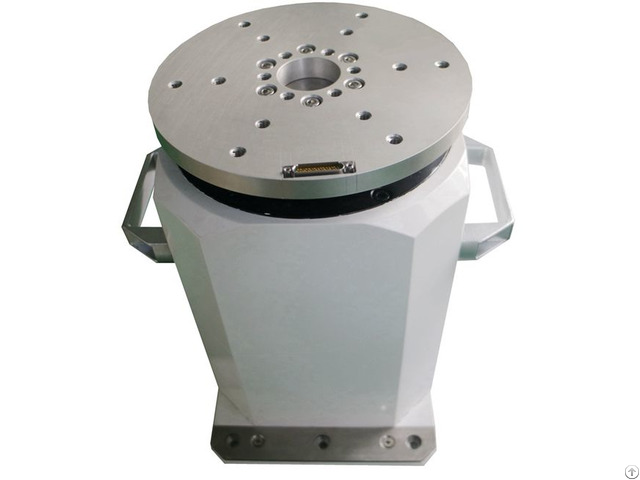

Single Axis Rate Turntable - China
price: 1.00 Dollar US$
Single-Axis Rate Turntable Function This device provides the benchmark of position and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.
Axis Orientation Vertical or Horizontal Payload Weight 5-40kg Dimension of Table Surface 200-500mm Magnetic Leakage ≤2 Gauss(20mm from the table surface) Material of The Table Super-hard Aluminum, Stainless Steel Table flatness 0.015mm Table Wobble 0.02mm Motion Error of Main Axis ±2″ Angular freedom Continuous Position Accuracy ±2″~±180″ Position Resolution 0.5″ Rate Range ±0.005°/s~±9000°/s Rate Resolution 0.001°/s Peak Acceleration 5000°/s2 Conductive Slipring 40 rings/3A Remote Control Interface RS232/RS422 Others The remote control interface can be adjusted by user’s requirements；
The quantity of conductive slip ring can be adjusted by user's requirements；
The dimension of table can be adjusted by user’s requirements；
Technical parameter can be adjusted by user’s requirements.
Company Contact:
- Posted By: Wuhan Skyline Control Co., Ltd.
- Phone: 13343458811
- Address: Building A1, Hangyu Area 2, Wuhan University Science Park, East Lake High-Tech Development Zone, Wuh, wuhan , hubei , China
- Email:
- Website: http://www.skyline-control.com/
Published date: July 2, 2019
- Business Description: Skyline is a provider of systems and solutions in inertial navigation, stabilization, guidance and control for defense, simulation system integration, motion simulation equipment, industrial automation system device, hydraulic and pneumatic mechanical components, aircraft ground detection instruments, computer software and hardware, special aerospace equipment applications.
