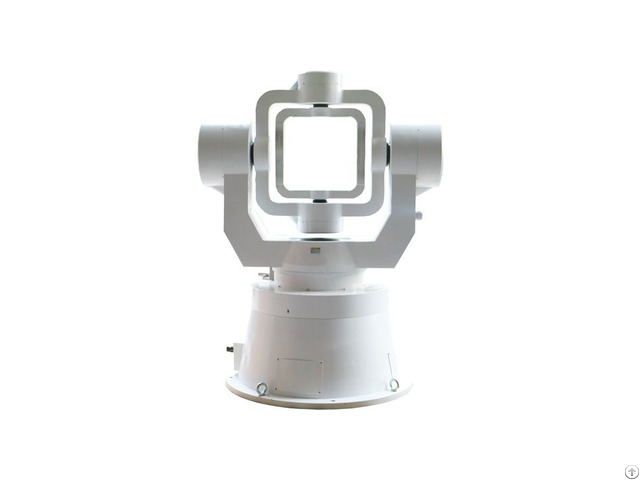

Three Axis Antenna Turntable - China

Three-Axis Antenna Turntable Inner Axis (up) Centre Axis (pitch) Outer Axis (down) Function This device has the function of simulation, position and rate; It can simulate the three-dimensional motion of the vehicle, it is used in the semi-physical simulation system of the ground, it provide a almost real sports environment for the load such as the radar antenna and also can provide the benchmark of precise single, two axis and three axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.

Axis Orientation Vertical(UOT) Maximum Load 2000-40000kg Dimension of Table Surface 600-1500mm bending moment 1300Nm 10000Nm 3000Nm Driving Moment 1300Nm 10000Nm 3000Nm Angular freedom Continuous ±95° Continuous Position Accuracy ±0.03° ±0.03° ±0.03° Rate Range ±0~±6°/s ±0~±3°/s ±0~±3°/s Angular Acceleration 0~3°/s2 0~3°/s2 0~3°/s2 Conductive Slipring 80 rings/3A Remote Control Interface RS232/RS422 Other The remote control interface can be adjusted by user’s requirements；

The quantity of conductive slip ring can be adjusted by user’s requirements；

The dimension of table can be adjusted by user’s requirements；

Technical parameter can be adjusted by user’s requirements.
