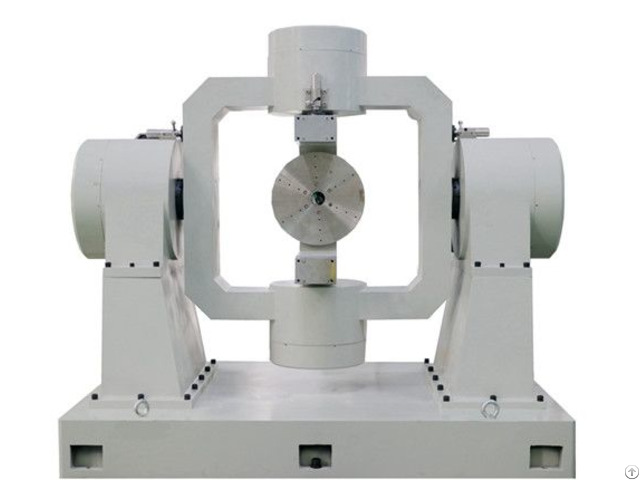

Three Axis Horizontal Turntable - China

price: 1.00 Dollar US$

Three-Axis Horizontal Turntable Inner Spindle (roll) Centre Spindle(azimuthal) Outer Spindle(pitch) Function This device has the function of position, rate, Swing, simulation and servo; It can be used for various types of aircraft inertial system test, swing test or flight control system simulation test.

Axis Orientation Horizontal(UOO) Payload Weight 5-40kg Dimension of Table Surface 500×500×500mm Table flatness 0.015mm Degree of Triaxial Intersection 0.5mm Perpendicularity of Two-Axis ±3″ ±3″ Motion Error of Main Axis ±2″ ±3″ ±3″ Angular freedom Continuous Continuous Continuous Position Accuracy ±2″ ±3″ ±3″ Position Resolution 0.36″ 0.36″ 0.36″ Rate Range ±0.005°/s~±600°/s ±0.005°/s~±400°/s ±0.005°/s~±200°/s Rate Resolution 0.001°/s 0.001°/s 0.001°/s Peak Acceleration 6000°/s2 4000°/s2 2600°/s2 System Bandwidth 12Hz 10Hz 8Hz Conductive Slipring 80 rings/3A Remote Control Interface RS232/RS422 Simulation Interface Reflective Memory Other The remote control interface can be adjusted by user’s requirements;

The quantity of conductive slip ring can be adjusted by user’s requirements;

The dimension of table can be adjusted by user’s requirements;

Technical parameter can be adjusted by user’s requirements.


Company Contact:


  • Phone: 13343458811

  • Address: Building A1, Hangyu Area 2, Wuhan University Science Park, East Lake High-Tech Development Zone, Wuh, wuhan , hubei , China

  • Email: Email


Published date: July 2, 2019

  • Business Description: Skyline is a provider of systems and solutions in inertial navigation, stabilization, guidance and control for defense, simulation system integration, motion simulation equipment, industrial automation system device, hydraulic and pneumatic mechanical components, aircraft ground detection instruments, computer software and hardware, special aerospace equipment applications.
