Two Axis Position Turntable - China

price: 1.00 Dollar US$

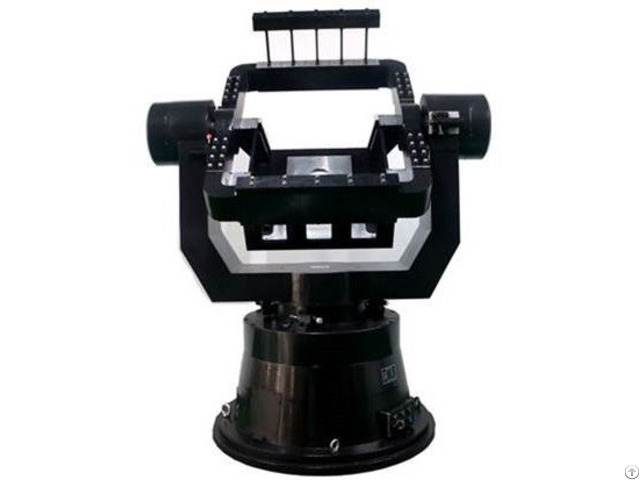

Two Axis Position Turntable

Products Photos Catalog Axis Position Photos Catalog

Two-Axis Position Rate Turntable Inner Axis(pitch)

Outer Axis(azimuthal) Function This device has the function of position and rate, it can provide the benchmark of precise single and two axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.

Axis Orientation Vertical(TU) Payload Weight 5-40kg Dimension of Table Surface 200-500(mm) Table flatness 0.015mm Perpendicularity of Two-Axis ±3″ Motion Error of Main Axis ±3″ ±2″ Angular freedom Continuous Continuous Position Accuracy ±3″ ±2″ Position Resolution 0.5″ 0.5″ Rate Range ±0.005°/s~±400°/s ±0.005°/s~±600°/s Rate Resolution 0.001°/s 0.001°/s Peak Acceleration 200°/s2 300°/s2 Conductive Slipring 40 rings/3A Remote Control Interface RS232/RS422


Company Contact:


  • Phone: 13343458811

  • Address: Building A1, Hangyu Area 2, Wuhan University Science Park, East Lake High-Tech Development Zone, Wuh, wuhan , hubei , China

  • Email: Email


Published date: July 2, 2019

  • Business Description: Skyline is a provider of systems and solutions in inertial navigation, stabilization, guidance and control for defense, simulation system integration, motion simulation equipment, industrial automation system device, hydraulic and pneumatic mechanical components, aircraft ground detection instruments, computer software and hardware, special aerospace equipment applications.
