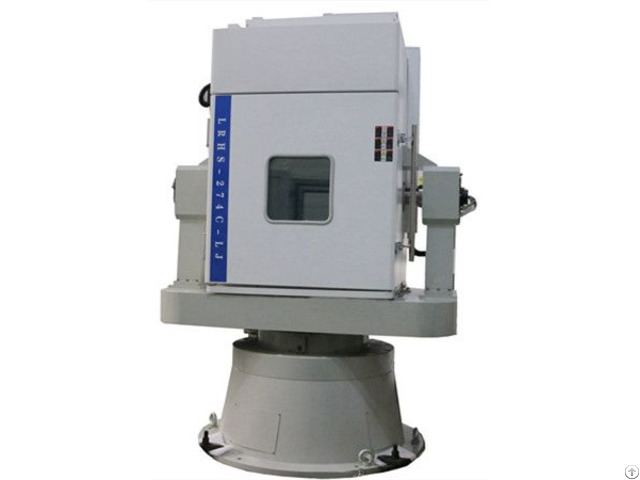

Two Axis Temperature Controlled Turntable - China

Two-Axis Temperature Controlled Turntable Inner spindle(pitch)

Outer spindle(azimuthal) Function This device has the function of position and rate, it can provide the benchmark of precise single and two axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.

The temperature box provides the test environment for the tested load with low and high temperature.

Axis Orientation Vertical(TU) Payload Weight 5-40kg Dimension of Table Surface 200-500(mm) Material of The Table Stainless Steel Table flatness 0.015mm Table Wobble 0.02mm Perpendicularity of Two-Axis ±3″ Motion Error of Main Axis ±3″ ±2″ Angular freedom Continuous, Unlimited Continuous, Unlimited Position Accuracy ±3″ ±2″ Position Resolution 0.5″ 0.5″ Rate Range ± 0.005°/s~±400°/s ± 0.005°/s~±600°/s Rate Resolution 0.001°/s 0.001°/s Peak Acceleration 200°/s2 300°/s2 Conductive Slipring 40 rings/3A Remote Control Interface RS232/RS422 Inside Dimension 600mm×700mm×800mm(L×Wà —H) Temperature Range -55℃+90℃ Temperature Stability ≤±0.5℃ Temperature Uniformity ≤±2.0℃ Temperature Deviation ≤±2.0℃ Rate of the Temperature Change ≥2.0℃/min Running Noise ≤65dB(1m in front of the box) Other The remote control interface can be adjusted by user’s requirementsï¼›

The quantity of conductive slip ring can be adjusted by user’s requirements；

The dimension of table can be adjusted by user’s requirements；

Technical parameter can be adjusted by user’s requirements.
