Bolted Steel Tanks As Uasb Reactor For Municipal Sewage Treatment Project - China

Bolted Steel Tank Introduction We specialized in bolted steel tank design, manufacture, and installation, we are the first bolted steel tanks manufacturer in China.

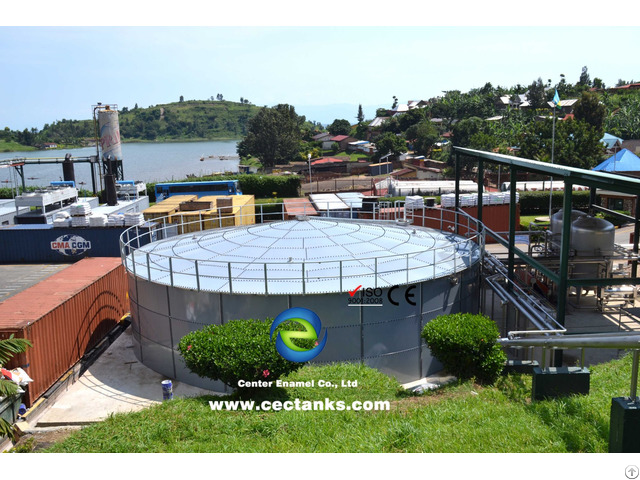

Our bolted steel tank is widely used as a UASB reactor in municipal sewage treatment project.

UASB reactor refers to a special kind of reactor concept for the " high rate " anaerobic treatment of wastewater.

In the 1970s it was developed by the Dutch scholars.

It is suitable for many different kinds of sewage The structure and management are simple, actually an extremely simple and inexpensive design, so that it is then widespread.

How the UASB Reactor Works?

Wastewater is distributed into the tank at appropriately spaced inlets from the bottom.

And then passes upwards through an anaerobic sludge bed where the microorganisms in the sludge come into contact with wastewater-substrates.

The anaerobic degradation process starts and gas will be generated The upward motion of released gas bubbles causes hydraulic turbulence that provides reactor mixing without any mechanical parts.

At the top of the reactor, the water phase is separated from sludge solids and gas in a three-phase separator (also known as the gas-liquid solids separator).

The three-phase-separator is commonly a gas cap with a settler situated above it.

After the anaerobic reaction, 80%~90% of organic waste will be decomposed What are Glass-Fused-to-Steel Tanks? After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or weld painted storage tanks.

Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate, and industrial wastewater treatment, etc.

applications Why Us?

Center Enamel Co., Ltd is not only the first bolted steel tank manufacturer and supplier in China but also the most experienced bolted steel tank manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc.

international standards.

CEC bolted steel tank are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel bolted steel tank have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
