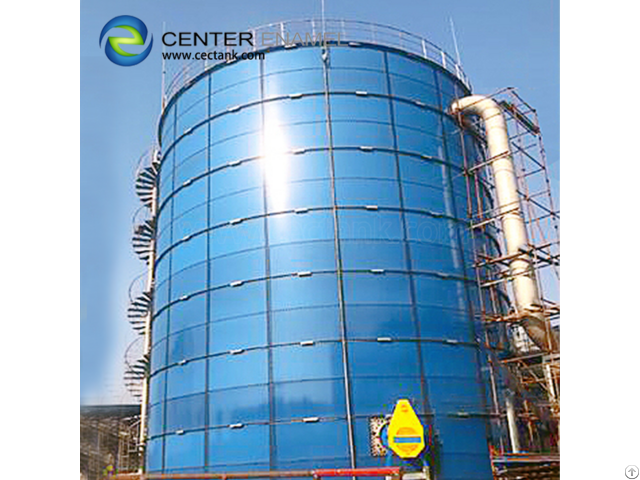

Bolted Steel Tanks For Water Storage Biogas Wastewater Treatment - China

Bolted steel tanks are made of individual sections including Glass-Fused-to-Steel, roof, tank ancillaries.

All the individual sections are manufactured and finished in the factory according to strict structural specifications, with quality bends, welds and surface processing.

The bolt holes and openings will be cut by CNC laser cutting machine automatically.

Spray the glass coating on both sides of steel panels automatically.

Coating thickness is controlled within 230 microns to 450 microns.

After enameling and drying, then firing steel panels in the oven at the temperatures ranging from 850℃ -940℃, which facilitates the interfacial fusion reactions that combine the two materials.

That is what we call Glass-Fused-to-Steel.

Unlike field welded tanks, field welded tanks must be installed on-site, often resulting in the imperfect and inconsistent finished coating, corrosion, and other damage.

The quality department will inspect all the individual sections after production, including coating thickness, holiday test, color consistency.

The defective rate of all products received by customers is zero.

Bolted steel tanks can save your transportation costs.

All the individual sections will be shipped in compact form with the container.

Assembly is quick and simple the truck.

When comes to installation, we will send out an installation guide to be on-site to train the local workers on how to assemble the tanks.

In contrast, Field-welded steel tanks are welded by trained and licensed welders, which cost a lot of money and time that might otherwise be better spent elsewhere.

This results in an installation process that is quick and easy, far faster than the installation of concrete or welded tanks, and it is not subject to the weather delays that often stall the installation of competing designs.

Bolted steel tanks have a large variety of system applications, mainly including fire protection water storage tank, potable water tank, anaerobic digester, biogas tank, dry bulk storage tank, leachate tank, municipal sewage tank, agriculture water tank and industrial wastewater tank.

Bolted steel tanks Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds Bolted steel tanks Manufacturer Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
