Glass Fused Steel Tanks With Aluminum Alloy Trough Deck Roof - China

Glass fused to steel bolted tanks combines the strength and flexibility of steel and the corrosion resistance of glass.

Glass-Fused-to-Steel is integrated porcelain enamel and steel material fused together at 820°C-930°C high temperature, creating a hard inert and inorganic bond, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or weld painted storage tanks.

Fusing glass to steel is becoming the premier technology in the tank market.

All our Glass-Fused-to-Steel tanks are pasted the certificaitons of AWWA-D103, OSHA, NSF/ANSI-61 (by IAPMO), ISO9001, FDA.

Glass Fused Steel to Tanks Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds Roofs And Covers

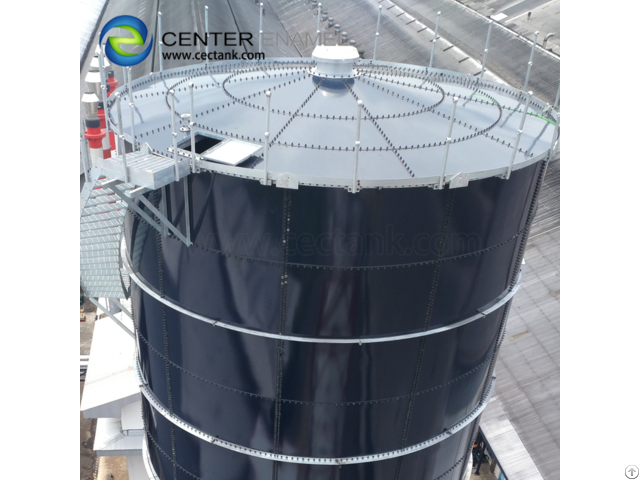

Glass-Fused-to-Steel roof with external/internal beams

Single and Double Membrane Roofs

FRP Roofs

Aluminum Dome Roofs About Center Enamel Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
