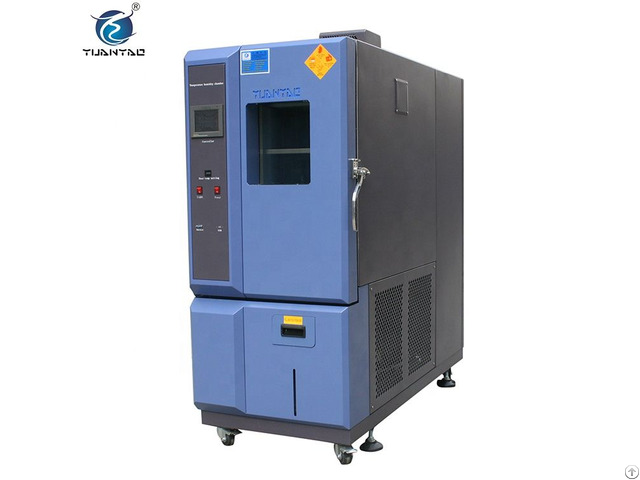

Lab Battery Pack Reliable Temperature Humidity Cycle Climate Chamber - China

2 - Features: Korea Samwontech controller, 5 different language

Automatic water filling (optional)

Access to PC remote control and monitoring

Customization services

Obtain national patents

Lab Battery Pack Reliable Temperature Humidity Cycle Climate Chamber Lab Battery Pack Reliable Temperature Humidity Cycle Climate Chamber Technicial details: Model YTH-080 YTH-150 YTH-225 YTH-408 YTH-800 YTH-1000

Inner chamber size W×H×D(cm) 40×50×50 50×60×50 50×75×50 80×85×60 100×100×80 100×100×100

Exterior chamber size W×H×D(cm) 60×172×120 70×174×130 70×172×181 100×182×197 120×197×197 120×197×217

Testing temperature range -70ºC, -60ºC, -40ºC, -20ºC, 0ºC~150ºC, Other temperature can be customized

Testing humidity range 20%RH~98%RH(Low humidity 10%RH~98%RH or 5%RH can be customized)

Temp.

humi.

fluctuation ±0.3ºC;±0.5%RH

Temp.

humi.

uniformity ±2ºC;±3% empty loading after stablize for 30mins ±2ºC;±3%RH

Temp.

humi.

resolution 0.01ºC;0.1%RH

Heating&cooling time ºC/min Heat-up: 3ºC/min(average) , cool-down: 1ºC/min(averag e)

Exterior chamber material Cold rolled plate + Powder coating

Interior chamber material SUS#304 Stainless steel

Insulation material PU

Circulation system Centrifugal fan air circulation system

Heating system SUS# Stainless steel high-speed heater

Humidification system Electrothermal steam humidification

Dehumidifying ADP critical dew point cooling / dehumidifying method

Refrigeration system Compressor + Finned evaporator + Air(Water) cooling condenser

Controlling system Touch screen controller

Other components Vacuum glass observation window

Test hole(50mm)

Controller status indicator

View light

Compartment shelf (2 freely adjustable)

Safety protection device Overheat protection circuit breaker

Humidification system overheat protection

Compressor overload protection

Control system overload protection

overload indicator

Phase sequence protection

Water shortage protection

High voltage and low voltage protection

Over temperature protection

Water supply delay protection

Fan overcurrent protection

Power supply AC 1ψ220V;3ψ380V 60/50Hz

Customization service Non-standard or special requirements are all welcome 3 - Production Line:

We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area, testing and finished product area.

We produce in strict accordance with international safety standard.
