Optical Fiber Temperature Monitor Host - China

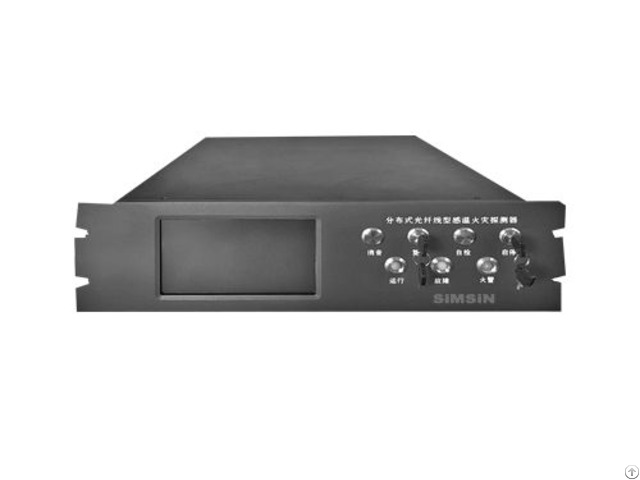

Product Name: Wired Distributed Optical Fiber Temperature Monitor Host

Model No: SS-DSTTEMP-4CH10KM19UFC22 0VAC

Product Description:

The distributed optical fiber temperature measuring host developed and produced according to industrial design standards supports 4-channel optical fiber monitoring, the maximum support of a single channel is 10KM, provides high temperature point positioning, temperature alarm, 19U standard size, and supports rack installation.

It can be matched with armor single mode optical fiber to realize long-distance temperature monitoring of oil, gas and high voltage lines.

Suitable for field oil, gas, heating, high voltage lines and other long-distance temperature monitoring, for flammable and explosive areas, lines in advance temperature warning.

Main Features:

1 - Supports four channels of optical fiber temperature measurement.

A single channel supports a maximum of 10KM

2 - Comes with running, fault, fire status indicator, real-time monitoring status

3.19U standard dimensions for standard cabinets

4 - Platform management software is optional, which supports centralized management of multiple hosts

5 - Single-mode armored optical fiber access

Product Application:

Suitable for field oil pipelines, gas pipelines, heating pipelines, high voltage lines and other long-distance temperature monitoring, for flammable and explosive areas, lines in advance temperature warning.

Realize long-distance oil, gas, high pressure line temperature monitoring.

Technical parameters:

1 - Measuring channel 4ch

2 - The longest measurement distance of a single channel 10km/ch

3 - Measuring time 30s/ch

4 - Spatial resolution 3m

5 - Sampling interval 0.4m

6 - Positioning accuracy ±1m

7 - Constant temperature operating temperature 60℃、70℃、85℃

8 - Host life 10years

9 - Sensing fiber 9/125

10 - Fiber diameter 3.0mm

11 - Optical fiber interface FC/APC

12 - Operating system Windows

13 - Communication interface LAN\USB\RS232\RS485\HDMI\ VGA

14 - Operating temperature Signal processing unit: (-10~50) ℃

15 - Sensitive element: (-40~50) ℃

16 - Storage temperature (-40~85)℃

17 - Working humidity (0~ 95%) R.H. no condensation

18 - Protection performance IP20

19 - Working power supply 220VAC

20 - Fiber parameter Fiber type: 62.5μm /125μm multi-mode

21 - Temperature range: -40℃-80℃

22 - The number of fiber cores: 2 cores
