Osha Bsci Glass Fused Steel Tank - China

The glass fused to steel rounded ( cylindrical ) shell of the tank is built from two-layer glass-fused sheets coated on both sides, the sheets are attached with special high-grade bolts and sealed by constantly flexible sealant.

The connecting material and shell accessories are equipped by the surface treatment.

This bolted system allows for freely scalable storage volumes, rapid installation, remodel, dismantle and re-location.

On both sides of the steel sheet, there are two layers of enamel ( glass ) which is backed in continuous furnace with temperature exceeding 850 °C.

This tight bond provides superior corrosion protection.

The glass-fused-to-steel tanks have been widely used for the storage of liquid and bulk material during the last decade.

And now it is used it is used as the basic structural element of environmental process sets such as waste water treatment plant (WWPT) and biogas digester / holder.

Excellent technical properties summary: 1 - Competitive service life regarding storage of very aggressive compounds compared to concrete or other tanks.

2 - High abrasion resistance and chemical resistance ( PH3~11 ) standard.

3 - High variability of construction tank design (Diameter, Height, Piping connection) and placing of technical equipment etc.

4 - Very smooth, non reactive and non sticky surface.

5 - No bacteriological growth 6 - Very quick, safe construction methodology.

7 - After their service life or purpose expiration, tanks can be easily and cheaply dismantled and ecologically reused.

8 - Thanks for the modular system, it could be easily transported to worldwide.

9 - Scalable storage volumes from 40m3 to 18000m3 - Standards Our company has the most advanced production line, and already passed ISO9001 - 2008 quality system certification, and product and design can reach AWWA D103 - 09 standard, OSHA and meet European standards.

We are the only enterprise that can produce AA grade ( acid - proof and alkali - proof ) enameled sheet now.

According to customers’ different operating requirements, we can customize various products.

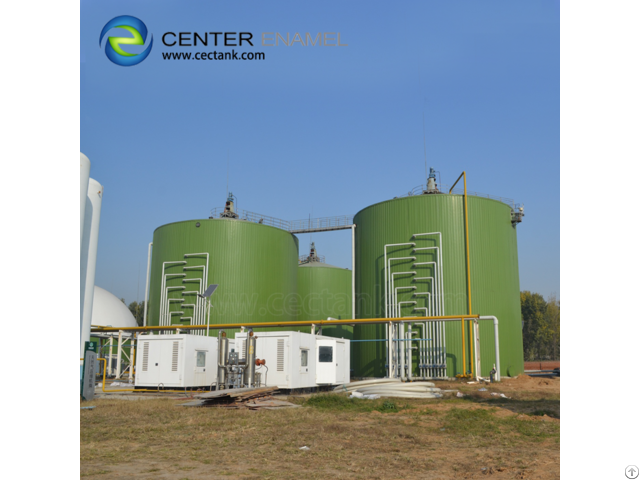

Application GFS tank has been widely used municipal and industrial effluent, sewage, waste water, water treatment, biogas digester as various aerobic and anaerobic reactors of UASB, EGSB, SBR, BAF, USR, CSTR, and equalization tank, sludge holding tank etc.
