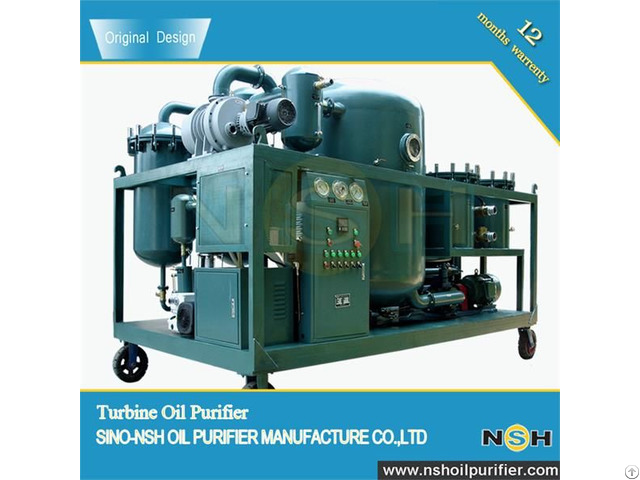

Tf Vacuum Turbine Oil Purifier - China

Description

TF series is particularly suitable for purifying turbine lubricant oil.

It also applys to treat hydraulic, coolant oil and other lubrication in which contain large amount of water and others such as vapor, impurities, sludge, dielectric and colloid.

TF series will result in the improvement of the properties of turbine oil or other lubrication and extend the maintenance period of turbines or other equipments which have lubrication system and keep them operate in good condition.

Technical Specification

Item Unit TF-10 TF-20 TF-30 TF-50 TF-100 TF-150 TF-200

Flow Rate L/H 600 1200 1800 3000 6000 9000 12000

Vacuum Range Mpa -0.06 ~ -0.096

Working Pressure Mpa ≤ 0.3

Clearness NAS ≤ 6

Temperature Range °C 40 ~ 80

Water Content PPM ≤ 100

Impurity Size μ m ≤ 5

Demulsification Number Min <15

Power Supply V 380V/50Hz(or as needed)

Working Noise dB ≤ 70 ≤ 75

Heating Power Kw 9 18 27 36 72 90 120

Total Power Kw 11 20 30 39 77 98 128

Pipeline Diameter mm DN20 DN20 DN20 DN25 DN32 DN40 DN50

Net Weight Kg 320 400 420 450 750 850 950

Size length mm 1280 1300 1300 1350 1500 1600 1700

width mm 750 900 950 1000 1000 1200 1400

high mm 1450 1450 1500 1800 1950 2000 2050

Features

1 - Eliminate soluble and dissolved water effectively and demulsify rapidly

TF series can not only separate large quantity of water but also remove trace of water from oil.

Fitted with specially made water separator, it is capable of making turbid emulsified oil very clear.

2 - High effectively purify matters in oil such as impurities, sludge etc.

The automatic backwash filtering system can remove large amount of particulate matters and fine filter system can remove tiny particles.

3 - High automation, stability and operation online High automation, small size, light weight, safety and reliability.

Installed with infrared liquid level automatic controller, the purifier machine will run automatically and easy handling.

4 - Demulsify rapidly, separate large quantity of water and water trace from oil.

5 - Backwash filtering system.
