Transformer Oil Purifier From China Alibaba Golden Supplier - China

Transformer Oil purifier from China Alibaba Golden Supplier

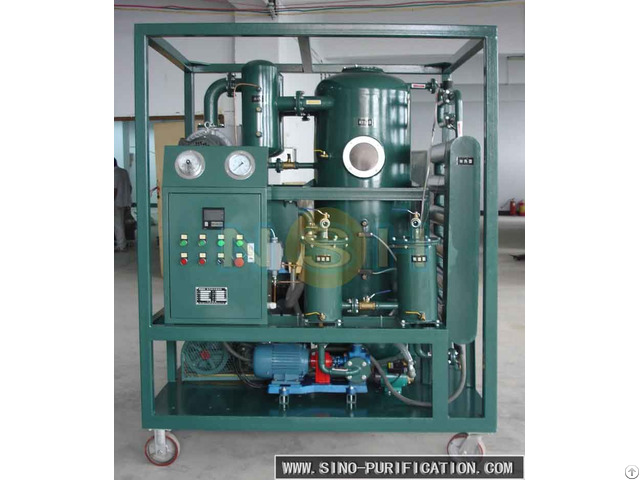

VFD-20

Flow Rate: 1200l/h

Application

VFD series is mainly used to improve the properties of insulation oil.

It can remove trace water, gas, particulate matters etc.

from the insulating oil effectively and rapidly so as to boost performance of insulation system.

VFD series specialize in purifying branded oil, insulating oil of super high voltage transformer.

Additionally, it is suitable for treating low viscosity lubricant oil.

Custom-made is available.

Features

1 - Effective and efficient Dehydration (Degassing) System

2 - High precision

3 - Powerful double stages

4 - Electrical apparatus controlling System

5 - High quality components

6 - The machine is available in mobile or stationary options.

7 - Various sizes and configurations (alloy shield)is available.

8 - Good quality low price.

Relative Models

VFD-A series is unattended, automatic control, controlled by touch screen and remote control.

VFD-E series is All explosion-proof.

VFD-R series can remove the acid suspending materials and contaminates.

Item Unit VFD-30 VFD-50 VFD-80 VFD-100 VFD-150 VFD-200 VFD-300

Flow Rate L/H 1800 3000 4800 6000 9000 12000 18000

Vacuum Range Mpa -0.092~ -0.099

Working Pressure Mpa ≤ 0.3

Max Vacuum Range Pa ≤ 50

Temperature Range ºC 45~ 80

Breakdown Voltage kV ≥ 75

Impurity Size μ m ≤ 5

Dielectric Loss tgδ ≤ 0.005

Interfacial Tension mN/m ≥ 40

Water Content PPM ≤ 5

Gas Content % ≤ 0.1

Power Supply V 380V/50Hz(or as needed)

Working Noise dB(A) ≤ 72 ≤ 78

Heating Power Kw 30 48 72 90 120 180 240

Total Power Kw 33 52 77 96 128 188 252

Pipeline Diameter mm DN20 DN25 DN32 DN32 DN40 DN50 DN65

Net Weight Kg 600 800 1000 1300 1800 2100 2400

Size length mm 1500 1600 1700 1900 2200 2300 2350

width mm 1100 1400 1500 1600 1700 1750 1850

high mm 1750 1800 1850 1900 2100 2250 2250

sinonsh315atsino-purif ication（dot）com

Company Contact:

• Posted By: Sino-NSH Oil Purifier Manufacture Co., Ltd

• Phone: 0086-18523967058

• Address: 1111 Room,No.36 Jianxin Road,GuanYinQiao Street,JiangBei District,400020, Chongqing , Asia , China

• Email:

• Business Description: Sino-NSH Oil Purifier Manufacture Co., Ltd. is a high-tech company which is engaged in researching, developing and manufacturing oil purification equipment.

  Its parent company, Sino-NSH High-Tech Company, was established in 1992.

  NSH regards technical innovation and all-round service as its philosophy.

  Taking advantage of human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed to making purification equipment.

  NSH has been authorized the ISO9001 Quality Management System Certificate and European CE Certificate.

  Now NSH has become the main manufacture base of purification machines in China.

  　

  The NSH oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway and aviation, etc.

  The main products covering 100 kinds of products can meet different needs of customers.

  For special demands of customers, we offer particular solutions.

  Nowadays, the companys sales network covers all the provinces in China and exports to more than twenty countries around the world.

  NSH products earn its fame on high quality, advanced technology and excellent service in both domestic and foreign markets.

  NSH products are not only able to lower customers' cost and secure risk effectively, but also solve the problem of the waste-oil-contaminate environment.

  Join hands with NSH, and get accomplishments for you and us.
