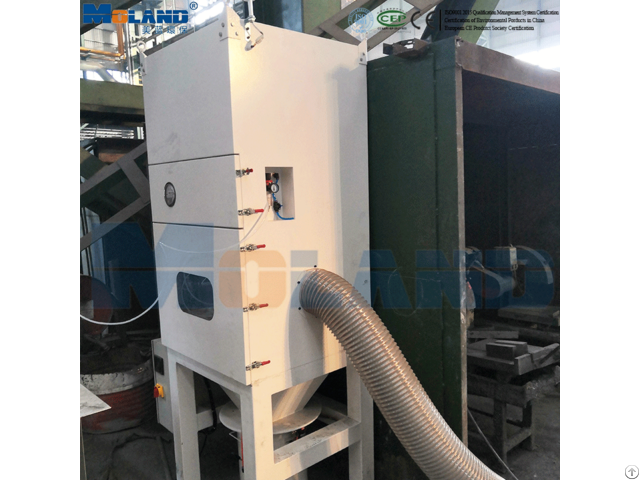

3kw Welding Cnc Cutting Fume Extractor With Ash Bucket - China

Suitable for welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce.

Performance Description

1- Integral structire with Fuma wheel at the bottom, flexible movement and fixing.

2- Anti-suction device to make the effect of ash cleaning more thorough.

3- Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from damage.

4- Pressure condition monitoring: alarm for low pressure of gas source to prevent incomplete dust cleaning.

5- Pressure differential gauge shows the working state of filter element intuitively, and automatic pulse back blowing with excessive pressure difference.

Standard Configuation

1- Filteration efficiency (>99.9%) of main filter core (covered polyester fiber)

2- Fault phase protectionm overload protection, air pressure monitoring and temperature monitoring devices

3- PLC intelligent control system

4- Tricolor lamp

5- Differential pressure gauge

6- Observation window

7- 30L dust collection drawer

8- Left and right air intakes (Dia.

200)

9- 5m power cord

10- Spark trap (large particle dust pre-filter) Spare Parts

1- Frequency conversion system

2- IO port 9remote control)

3- Explosion proof configuration

4- Universal flexible arm (Dia.

160mm)

5- Suction duct (Dia.

200mm) Recommended Working Condition

1- Welding workstation (3m*2.5m*4m)

2- Artificial welding position *2

3- Grinding machine, intersecting wire cutting and other working conditions
