Anaerobic Digester For Wastewater Treatment And Biogas Project - China

Anaerobic Digester for wastewater treatment and biogas project, cooperate with global leading GFS tanks manufacturer Anaerobic digesters/Biogas storage tanks are widely utilized in fields of industry, agriculture, or municipality.

Amongst them using anaerobic digestion to generate biogas from organic wastes is increasingly becoming one of the most important and popular utilization.

The process of anaerobic digestion is used for industrial or domestic purposes to manage waste or to produce bio-energy.

Anaerobic digestion is already a mature process technology to get green renewable energy.

The process produces biogas, consisting of methane, carbon dioxide and traces of other 'contaminant' gases.

This biogas can be used directly as fuel, in combined heat and power gas engines or upgraded to natural gas-quality biomethane.

The nutrient-rich digestate also produced can be used as fertilizer.

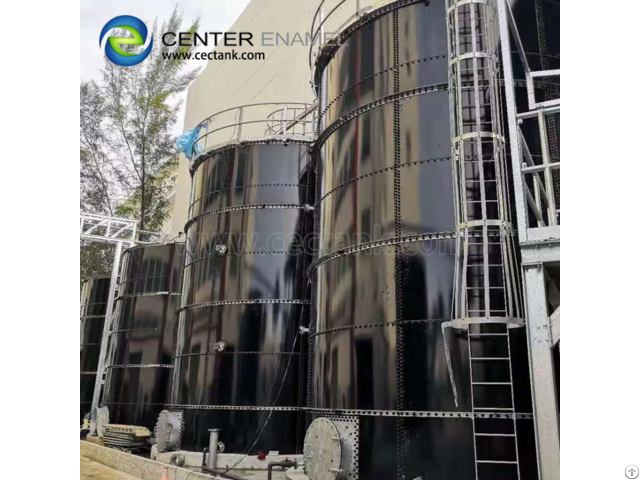

Center Enamel's Glass-Fused-to-Steel Tanks are acting as various anaerobic digesters in such above mentioned processes and applications.

It could be thermophilic digesters, mesophilic digesters, or hydrolysis tanks amongst all of these processes where the anaerobic environment is required.

When it comes to the cover solutions of an anaerobic digester, it could be a Glass-Fused-to-Steel roof or PVC coated double membrane gasholder.

It will be determined by the AD process requirements.

Center Enamel is able to provide both covers.

When the AD tank is covered with a double membrane gas holder, the anaerobic digester itself is also acting as a biogas storage tank of whose top is collecting biogas, this is common to be seen at many plants.

Considering the plant investment in the long-term as a whole, Center Enamel's Glass-Fused-to-Steel tank is the most suitable and cost-effective choice of the anaerobic digester.

Glass Fused to Steel Tank Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds GFS Anaerobic Digester Tank Advantages : - Short construction period, low project cost ; - Superior corrosion resistance, service life is more than 30 yeas - Convenient installation, easy construction, good quality - Tank volume can be easily expanded - Beautiful appearance, color can be customized - Not subject to weather conditions - No need big installation equipment - Easily expand, dismantle, move GFS Anaerobic Digester Tanks Manufacturer Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
