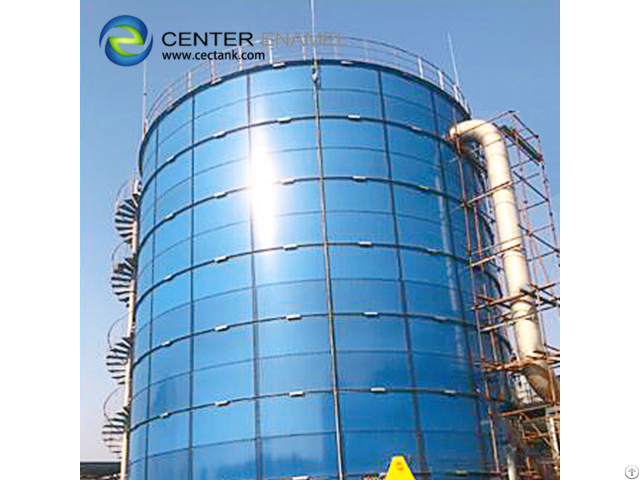

Enamel Coated Uasb Sludge Digester Tank Anaerobic Generator - China

What is UASB reaction ? UASB process is adaptable for much different sewage, and the structure, operation and management are simple, the cost is low and the technology is matured .

The UASB reactor is widely used in anaerobic digester .

After flowed into the UASB reactor from the bottom, the sewage upflowed through the sludge bed which is the containing much granular sludge or flocculation sludge, and the anaerobic reaction occurred when the sewage meeting with the sludge .

and then the biogas generated .

At the same time the internal sewage is agitated and continues the circulation .

The three – phase separator at the top reactor will help to separate the gas, the liquid and the solid .

After the anaerobic reaction, 80% - 90% of organic waste was decomposed .

What is the process of the anaerobic digester ? Anaerobic digester (AD), the first step is the decomposition of plant, animal or other matters, in this process it breaks down the organic material by the micro- organisms in the absence of oxygen .

The second step, after the organic material was break down, the usable-sized molecules will cover the decomposed matters to organic acids .

At the end, the acid are converted to methane gas Anaerobic digester produces biogas, a methane-rich gas that can be used as a fuel, and digestate, a source of nutrients that can be used as a fertilizer .

Increasingly AD is being used to make the most of our waste by turning it into renewable energy .

AD benefits many different groups ; including the local community, industry, farmers and energy entrepreneurs, government and the environment .

Glass fused steel tank specifications Steel plates thickness : 3mm - 12mm, depends on the diameter & height Coating thickness : 0.25mm - 0.4mm, two coating internal and external Coating color : dark blue, dark green, white, and customized A standard steel plate size : effective size 2400 mm x 1200 mm Acid and alkalinity proof : standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 Service life : more than 30 years Holiday test : 1500V Permeability : gas liquid impermeability Easy to clean : Smooth, glossy, inert, anti – adhension
