Excellent Abrasion Resistance Glass Lined Steel Tanks For Industrial Liquid Storage - China

There are many kinds of storage tanks such as Concrete Tank, Carbon Steel Tank, FRP Tank etc.

However, more and more customers prefer to choose porcelain enamel Tanks as their first solution for potable water and drinking water storage.

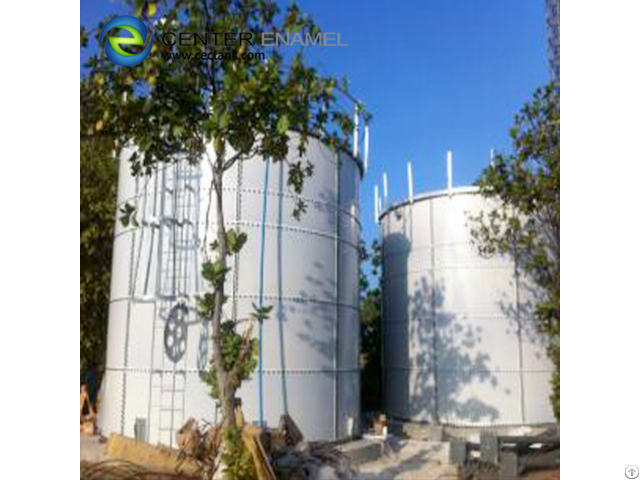

Porcelain enamel tank is also known as Glass Fused to Steel tank, whose steel is finished where Glass and Steel are fused together to achieve the best of strength and flexibility of the steel combined with the superior corrosion resistance of the glass.

Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate and industrial wastewater treatment etc.

Applications Glass Lined Steel Tanks Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds Why choose Glass Lined Steel tanks? 1 - Short installation period : compare to more than 40days installation time for other type tanks, usually porcelain enamel tanks only needs even less than 15days.

2 - Superior corrosion resistance : porcelain enamel tanks can resist pH rage 1-14 - 3 - Beautiful appearance : standard color is dark green, and color can be customized according to customer’s request, to fit for surrounding environment.

4 - Climate adaptability : GLS tanks can be used in almost all kinds of weather conditions, that is very important for some special areas.

5 - Long service life : more than 30 years’ service life also shows its excellent quality.

6 - Easy construction : No need big installation equipment, and can be designed for easily expand, dismantle and move.

About Center Enamel Co., Ltd Center Enamel Co., Ltd is not only the first porcelain enamel Tanks manufacturer and supplier in China, but also the most experienced porcelain enamel tanks manufacturer in all of Asia.

Center Enamel porcelain enamel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel porcelain enamel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
