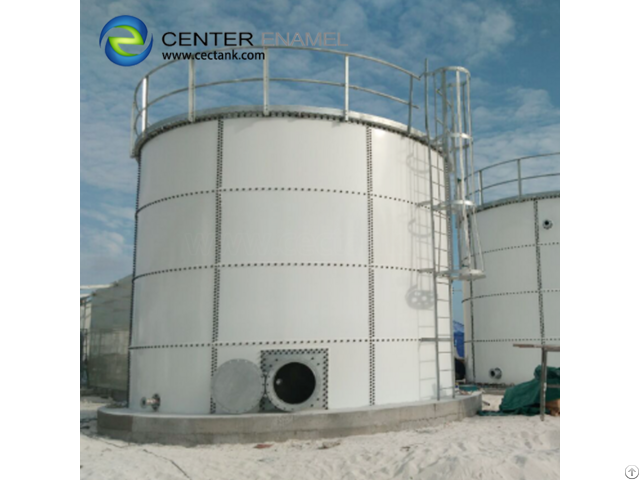

Expandable Porcelain Enameled Steel Commercial Water Tanks Awwa D103 09 Osha And Iso En 28765 - China

Our expandable porcelain enameled steel commercial water tanks are glass fused to steel tank or called glass lined tanks, enamel-coated tanks, they all refer to the same.

After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass.

The unique manufacturing process makes glass fused to steel tanks outstanding compared with other types of tanks.

The impermeability and unique features of the glass offer numerous advantages The glass coating process begins with a glass frit that is mixed with other minerals and water to create a liquid slurry .

This glass slurry is then robotically sprayed at precise amounts and thicknesses onto previously cut and rolled, punched, grit blasted and cleaned steel panels.

The panels are then put into a furnace at high temperature, then melts the silica glass slip into the surface of the grit blasted steel .

Glass fused to steel tank is environmentally friendly and generally very competitive Commercial Water Tanks Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds Why choose Center Enamel Glass-Fused-to-Steel Commercial Water Tanks: - The first and most professional Glass-Fused-to-Steel tanks manufacturer in Asia - Innovative enameling protection technology on sheet’s four edges and bolt holes - Successful projects reference in more than 60 countries in the world - Products conform to or exceed AWWA D103-09, OSHA and ISO/EN 28765 - Certified by ISO9001, NSF61, BSCI, etc.

international qualification system - Cutting edge enameling technology to lead industry innovation - Quick installation and lowest maintenance cost Commercial Water Tanks Manufacturer Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing, and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA, etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture, etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc.

The superior product quality and prompt service gain us worldwide recognition.
