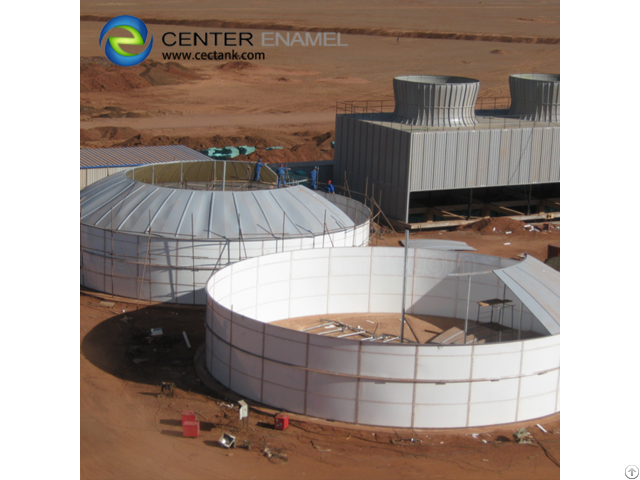

Glass Fused To Steel Liquid Storage Tanks For Industrial Wastewater Treatment Project - China

Center Enamel designs, manufacture and install glass fused to steel industrial liquid storage tanks for more than 30 years.

Our systems are suitable for all stages of wastewater treatment including mixing tanks, flocculation tanks, sedimentation tanks and others.

After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks.

Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate and industrial wastewater treatment etc.

Applications.

Wastewater from municipal, industrial sites, landfills, agricultural pesticides, and other sources cannot be indiscriminately discharged into the environment where they can pollute bodies of water or soil and generate air pollution.

Preliminary treatment, primary treatment, secondary treatment, tertiary treatment, and disinfection-the typical treatment procedures all require holding tanks.

Center Enamel offers a wide variety of bolted tank systems applicable to wastewater treatment.

Our Bolted steel tanks have been used for sludge thickening and digestion tanks.

Bolted Steel tanks are excellent choices for landfill runoff water.

glass fused to steel industrial liquid storage tanks Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coating internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds glass fused to steel industrial liquid storage tanks Manufacturer Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
