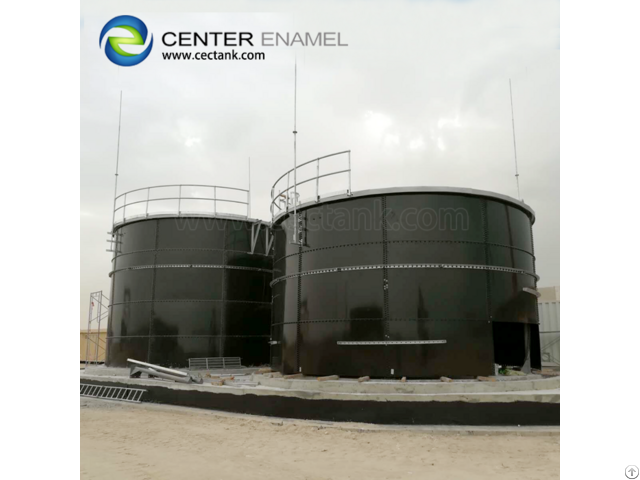

Glass Fused To Steel Tanks Commercial Water Tank - China

The glass fused to steel tank is made of special steel plate, special sealant and self-locking bolt with a service life of more than 30 years.

After pretreatment, two or three layers of enamel coating are applied to both sides of the special steel plate.

After thermal polymerization, a strong bond was formed between the coating and the steel plate.

The protective layer formed by the coating can not only prevent the corrosion of the tank, but also have strong functions of acid resistance, alkali resistance and abrasion resistance.

Glass-Fused-to-Steel Tanks Specifications Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds We use special steel plate as enamel steel plate, which is twice as strong as ordinary steel plate, and the thickness of common steel plate is between 3mm and 12mm.

Spray glazes and surface glazes on both sides of the steel plate.

After the heat treatment at 850-940℃, a 0.3mm thick enamel coating will be formed on the surface of the steel plate, which can not only prevent the corrosion of the steel plate, but also have the function of strong acid and strong alkali.

Self-locking bolts are easy to install and do not require large mounting equipment and/or highly skilled workers.

Central Enamel glass fused to steel tank is the best choice for wastewater treatment.

Widely used in drinking water storage tanks, industrial wastewater storage tanks, anaerobic digester, leachate storage tanks, agricultural storage tanks, fire storage tanks, dry bulk cargo storage tanks, urban sewage, etc.

So far, the center has been exported to the United States, Australia, Canada, Malaysia, Indonesia, Russia, united Arab emirates, panama, India, South Africa and more than 60 countries.
