Glass Lined Steel Industrial Liquid Tanks For Wastewater Treatment Plant - China

Glass lined steel tanks, also known as glass lined steel tanks, this is the only tank finish where two materials are fused together to achieve the best of both: the strength and flexibility of the steel combined with corrosion resistance of the glass.

The high temperature fusion of glass to steel fired at 820°C-930°C results in an inert, durable finish.

Applied to both interior and exterior, the GFS technology is able to withstand the rigours of the construction site and provide many years of trouble free service in harsh environments.

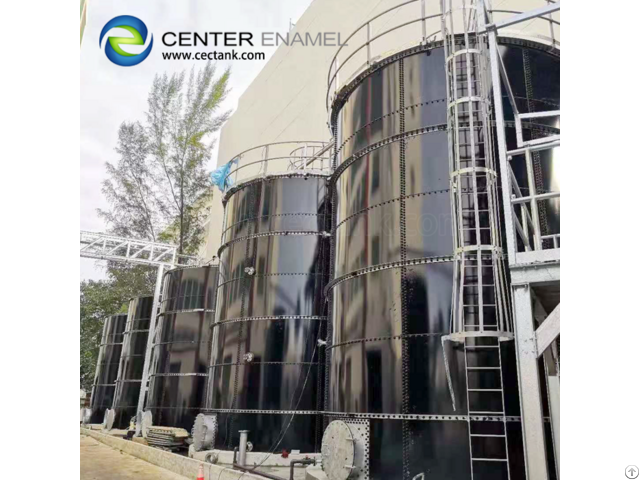

Glass fused to steel industrial liquid tanks are used for industrial wastewater treatment plant.

Center Enamel's Glass-Fused-to-Steel tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765: 2011, and our GFS tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life.

Glass Lined Steel Liquid Storage Tanks Specififcations Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds About Center Enamel Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
