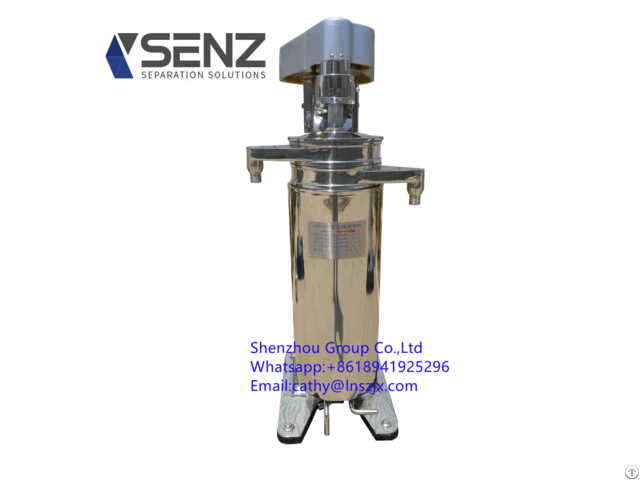

GQ and GF series oil water separator tubular centrifuges manufacturers suppliers HIGH-SPEED TUBULAR SEPARATOR

High Speed Tubular Bowl Separator Structure and principle: The separator consists of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.

The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.

GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring.

They flow to the top of the bowl and discharge from their respective outlet.

And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.

GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl, and forms the sludge.

And it will be

discharged by manual after the machine stops.

The clear liquid flows out of outlet from the top of the bowl.

It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases.

The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise.

The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry.

It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.

Working principle of Tubular Separator Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator.

The upper drum is a flexible shaft, while the lower is damping floating bearing.

The main shaft is connected by a coupling buffer and a passive wheel.

Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field.

All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid.

During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring, which separately flow to respective liquid outlet mounted on the upper drum.

When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.

Application：Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases.

such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.

Specification
