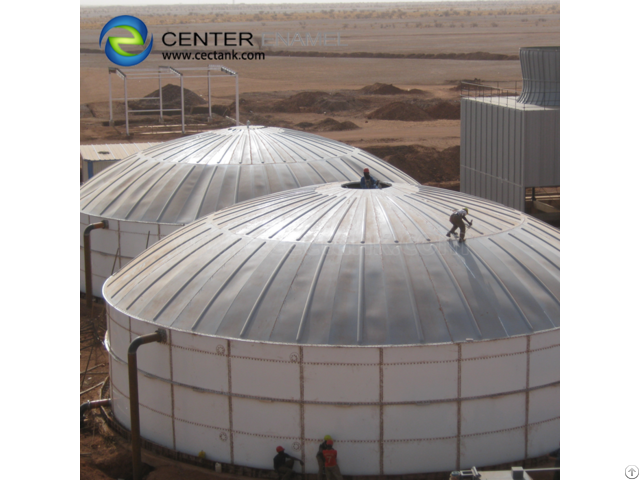

Liquid Impermeable Bolted Steel Tanks For Sewage And Wastewater Treatment Plant Stp - China

Glass-Fused-to-Steel (GFS), also known as Glass-Lined-Steel (GLS), enamel tanks, these names all means the same thing.

Is two materials - Enamel frit and raw steel are fused together after two coating and two heat treatment at 800-900℃ to achieve the best cohesion blending of the strength and flexibility of steel combined with the corrosion resistance of glass.

Applied to both interior and exterior surfaces, Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments.

This solution utilises the Glass-Fused-to-Steel finish on both interior and exterior surfaces to give long term protection and the following benefits: Category Specification

Coating Color Dark green, or Customizing colors

Coating Thickness 0.25~0.40mm, double coating

Acid and alkalinity proof Standard pH: 3~11, Special pH: 1~14

Adhesion 3, 450N/cm

Elastic Same as steel sheet, around 500kN/mm

Hardness 6.0 Mohs

Service life ≥30 Years

Holiday test >1500V

Permeability Gas liquid impermeable

Easy to clean Smooth, glossy inert, anti-adhesion

Corrosion resistance Excellent suitable for waste water, salt water, sea water, high sulfur crude oil, salt fog, organic and inorganic compounds

Modular bolted tank construction Rapid and cost effective site installation, reducing project timescales, costs and requirement for on-site equipment

Flexibility to remodel Tanks can be extended, dismantled and re-sited giving long term asset value

Maintenance Safe and secure storage, with minimal maintenance costs Application including: Water supply and treatment

Municipal Wastewater treatment

Biogas Digesters

Agricultural silos

Sludge Storage

Potable / Drinking Water Storage

Storm Water Retention Tank

Sludge Tank

Clarifier

Trickling Filter

Flow Equalization

SBR

Aeration Tanks Design criterion & certificates: This system has been proven over many decades on thousands of installations, and is supported by International Standards which cover the design and finish requirements: OSHA, EN28765, NSF/ANSI 61, ISO9001, FDA, AWWA-D103-09 Who we are? Center Enamel Co., Ltd was established in 1989, is the pioneer and the largest manufacturer of glass fused to steel tanks in China.

CEC Engaged in enamel industry for more than 20 years, focused on enamel frit R&D and achieved more than 200 patents of enamel frit formulas.

CEC Advantages: Professional R&D Team: - 1*Technical Consultant National technical expert; Senior engineer; over 50 years enameling R&D experience - 23*Advanced Technician Postgraduate educational background; expert in enamel R&D over 10 years Advanced Production Line

- Raw material - enamel frit manufacturer - CNC cutting machine for steel place - Automatic enamel line for spray Quality Control

- Raw Material Test: Raw material ingredient analysis, raw material impurity test and etc.

- Enamel Sample Test: Enamel fluidity test, color difference analysis, firing test, acid and alkali resistance test, adherence test - Destructive Test: Impact test, holiday test, slice microscope analysis - Numbering for each steel plate for tracking
