Microwave Disinfection Unit For Medical Waste Mdu 3b - China

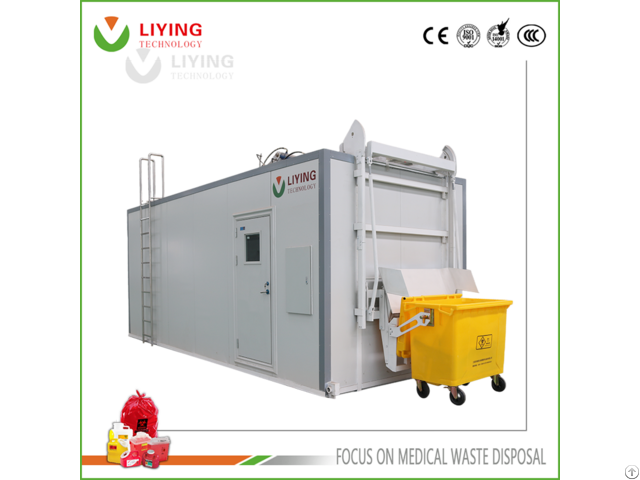

Microwave disinfection unit for medical waste Model MDU-1B

MDU-1B is an integration system including feeding, shredding, disinfection, discharging, and exhaust ducting systems.

60kg/h treatment capacity, or 600l/h, based on an average density of medical waste at 0.1kg/l ~0.15kg/l.

It can service well to some large scale or medium scale hospitals, clinics, or any other healthcare centers, Customs epidemic prevention department, etc.

whose medical waste quantity would be 500kg per day (±10%).

PROCESS

The infectious material is temporarily held in a waste container(s) which in turn, are emptied into an pre storage hopper via a charging system which is located at the front of the MDU, The infectious waste is fed to the shredding system by a feed arm where it is shredded.

The shredded material is conveyed through a microwave section and temperature holding section, respectively for disinfection, with microwave of 2450MHz (±50MHz), temperature ≥95℃, with over 45minutes.

The disinfected and unrecognizable (sharps) waste is then discharged into large waste containers (or compaction units) by the discharging screw conveyor.

From there the material can be transported to a local municipal landfill for disposal or to a refuse recycling plant.

What did the Microwave Disinfection Unit (MDU) do to bacterias?

How is the Microwave Disinfection Unit (MDU) disinfecting by microwave? Microwave disinfection is the result of microwave thermal effect and biological effect, which can make microwave energy and bacteria directly interact, rapid sterilization.

　　The thermal effect of microwave energy: Under certain intensity microwave field, the bacteria will be due to the absorption of polarized molecules can increase the temperature of microwave, so that the protein deformation, loss of biological activity.

The thermal effect of microwave mainly plays the role of rapid temperature sterilization.

　　Non-thermal effects of microwave energy: High-frequency electric fields change the polarized molecular structure, resulting in the loss of vitality or death of proteins and physiologically active substances in the microbes, and the special effects of conventional physical sterilization in the sterilization EQUIPMENT ADVANTAGES Integrated equipment design, small footprint and low noise.

The equipment has a high degree of automation, and only one person is required to operate a complete set of equipment, saving labor costs.

Low energy consumption, the whole set of equipment only needs electric drive, taking 5t per day as an example, the total installed power is only 117 kilowatts.

The medical waste treatment method is flexible.

When there is medical waste to be processed at any time, the equipment can be turned off after the treatment is completed, which minimizes energy loss and personnel wages and saves treatment costs.

Company Contact:

• Posted By: Henan Liying Environmental Science and Technology

• Phone: 18737028513

• Address: High-tech Development Zone of Minquan County , Henan, Shangqiu , Henan , China

• Email:

• Website: http://www.liyingtec.com

• Business Description: Henan Liying Environmental Science and Technology Co., Ltd., founded in 2014, headquartered in Minquan county, Henan province.

  It is a professional eco-friendly enterprise specializing in R&D of medical waste harmless treatment technology, equipment manufacture, investment and operation of central treatment centers for medical waste.

  As a national high-tech enterprise, Liying has multiple R&D platforms, such as Henan Medical Waste Treatment Engineering Research Center, the Henan Postdoctoral Innovation Practice Base, and the Henan Enterprise Technology Center, etc.

  Based on the self-developed microwave disinfection equipment, it has successfully developed a series of related products, like mobile microwave treatment vehicle and on-site disposal equipment for medical waste, and intelligent information management system accordingly.

  It has the ability to provide integrated solutions for various medical waste disposal, with a high market share and brand awareness in the industry.

  It is the only manufacturing enterprise in the world that achieves batch shipment for medical waste microwave disinfection equipment.

  With characteristics of high degree of automation integration, low operating cost, zero emission, and can efficiently meet various scenarios such as centralized treatment, emergency treatment, and on-site treatment.

  Each year more than 100 sets of microwave disinfection equipment produced by us are widely used in China.

  Liying invests and operates medical waste central disposal projects throughout the country, accumulated rich experience in project management.

  So far, we have invested and operated centralized treatment centers in about 16 cities, all of which have successfully passed the environmental inspection by local authorities, and received unanimous praise from the functional departments and customers in terms of internal management, market operation, and environmentally friendly.

  Exported equipment cases: the United States, Iran, Tunisia, etc.
