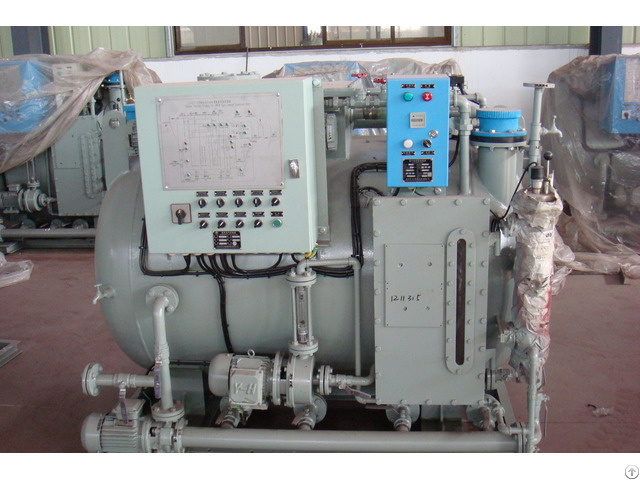

Small Ship Sewage Treatment Plant - China

This small sewage treatment plant adopts the principle of the Activated Sludge, Bio-contact Oxidation and Membrane Biological Reactor (MBR)to digest organic pollutant.

MBR can treat organic pollutant efficiently, drastically and cleanly to ensure the effluent can meet the requirements of the resolution MEPC.

159(55) and other much hasher requirement.

This sewage treatment plant is applicable to treat the sewage, which means human body wastes and the wastes from toilets on vessels and which is also called”black water”, to meet the effluent standards of IMO.

MEPC.

159(55), and discharge the effluent overboard.

It is also applicable to treat the galley, shower drainage which is called “ Grey water” on condition that the “Grey water” is pretreated and there should select a bigger capacity model to match with.

Specification 1 - According horizontal circular design, ellipse closures on both ends, pressure resistant and compact structure.

2 - The sewage treatment plant is adopted auto-control;, and compliance with the requirement of 24 hours unattended cabin.

3 - Adopting the “MBR” technology, devices allows to the narrow size, and solve the conflict of small space of cabin, but big volume of device.

4 - The intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of “ aerobic-anoxic”, and resolve the problem of “nitrogen and phosphorus removal”.

5 - The sewage treatment plant is adopting the principle of “air-lifting” to transfer the sludge from sediment tank and membrane tank to aeration tank, meantimes the “ pump stops and air never stopped”, so as the scale on the membrane surface comes down.

Due to back flushing and clean the membrane “online” used technology patent, so the life of membrane can be prolonged at least 8-9 years.

6 - “On-line” cleaning technology, making the dirt on membrane off automatically, recover membrane flux.

It can be solved the problem of opening the cleaning or replacement if membrane difficultly caused by the small space om cabin.

7 - The effluent after further treatment can be reached at the requirement of “water recovery”.

Quick Details

Place of Origin:

Chongqing, China (Mainland)

Brand Name:

OEM

Material:

wooden

Weight:

4200kg

Size:

5980x2400x2600mm

Power:

11.0kw, 2.25kw-11kw

After-sales Service Provided:

Video technical support, Field maintenance and repair service

Warranty:

1 Year

Standard:

MPEC.

159(55)

Application:

waste water treatment

Certificate:

ABS, CCS, DNV-GL, USCG, KR

Method:

Combined Treatment

Dry weight:

1000~3700 kg

Wet weight:

2283~20357 kg

Rated Capacity:

15P-400P

Technology:

MBR

Max Capacity:

17P-440P
