Solid Liquid Sludge Centrifuge Separator - China

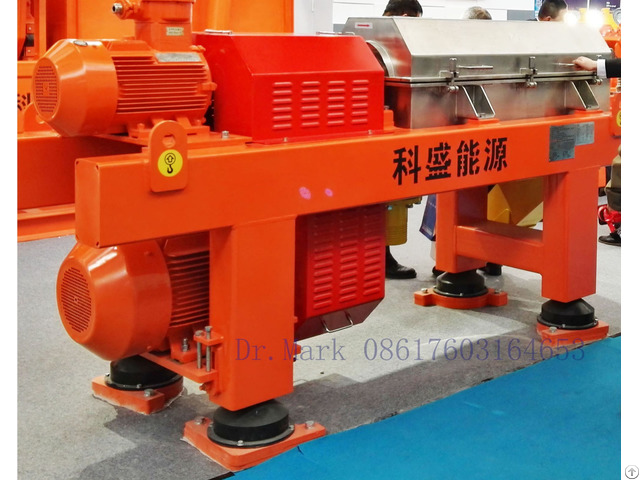

Decanter Centrifuge-VFD

Decanter Centrifuge, basically to be considered as the precise procedure during drilling fluid separation.

Model KALW363 -VFD, assembly with the field-proven durability offering premium performance, with PLC -controlled variable frequency drives controlling bowl and conveyor speed as well as feed rate, also the KALW series can be rapidly optimized for most efficient solids control in a wide range of drilling applications.

While the automated control system adjust feed rate based on centrifuge loading, ensuring the maximum solids removal without operator intervention.

Besides, the KALW series are designed especially for protecting personnel from hazardous conditions onsite and, it is a modular design, allowing the control cabinet to be positioned separately from the centrifuge for the safety of equipment operators and increased flexibility for job site installations.

The KALW series Centrifuge, offers a robust mechanical design coupled with advanced control tech, enabling it to provide consistent and effective solids control in a wide range of drilling fluid types and drilling conditions.

The stainless steel bowl and conveyor with hardened and replaceable wear parts reduce the total ownership cost and maintenance downtime.

With a maximum of 3060 G’s at 3900 RPM bowl speed, the KALW363-VFD separates fine solids from drilling fluids, improving drilling fluid rheology and thus drilling performance .

The KALW363 features a 37 KW conveyor drive motor with 3500 N.

M gearbox torque, allowing to maintain high feed rates while processing drilling fluids with high solids content and high mud weights.

With an 220mm diameter bowl capable of processing high volumetric flow rates and removing large quantities of solids, the KALW363 has the capacity needed for effective solids control on deep wells with high circulating rates and fast rates of penetration.

Automatic load sensing and feed pump control dynamically adjusts the pump rate to maintain bowl or conveyor torque set point, enabling automated processing optimization and preventing rotating assembly overload.

The KALW363 is available with remote monitor and control capability, allowing the operator to be located outside of hazardous working environments and enabling offsite technicians to perform process optimization, quality control, and troubleshooting.

Decanter Centrifuge(Dr.

Mark 08617603164653)

Model KALW223 KALW223-VFD KALW363 KALW363-VFD KALW452 KALW453

Drum ID(mm) 220 220 360 360 450 450

Drum Length(mm) 670 670 1271 1271 1105 1540

Max.

Capacity(m³/h) 2 2 40 40 55 80

Drum Max Speed(RPM) 4500 4500 3900 3900 2200 3200

Drum Rated Speed 3800 0~3800 3200 0~3200 1800 2800

Max G-Force(G) 2492 2492 3063 3063 815 1973

Rated G-Force(G) 1777 0~1777 2062 0~2062 815 2578

Separation point(μm) 2~5 2~5 2~5 2~5 5~7 2~5

Differential Speed Ratio 95: 1 57: 1 57: 1 57: 1 57: 1 57: 1

Differential Torque(N.

M) 1400 1400 3500 3500 3500 4000

Main Motor Power(KW) 7.5 7.5 37 37 45 45

Back Motor Power(KW) 3 3 11 11 N/A 15

Explosive-Proof Cabinet EXdllBt4/IECEX/A-TEX

Weight(KG) 750 750 3300 3300 2634 2900

Dimensions(mm) 2130x790x1115 2130x790x1115 3414x1516x1430 3414x1516x1430 3274x1090x1653 3789x1090x1685 Notice: Especially mentioned that all data can be designed separately as per your request.

And can be accommodated with ’s standard or SWATO’s.
