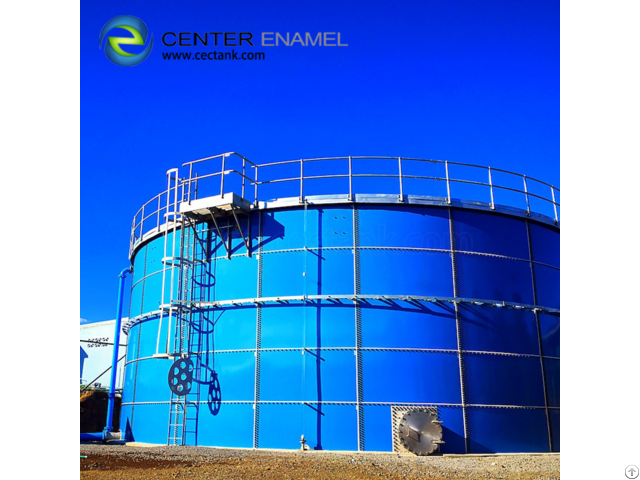

Superior Corrosion Resistance Glass Fused To Steel Tanks For Water Storage - China

Glass Fused to Steel Tanks consist of Glass-Fuse-to-Steel, special sealant, self-locking bolts and other accessories.

And among them, enamel sheet is the most important part.

Enamel sheet is finished where Glass and Steel are fused together to achieve the best of both: strength and flexibility of the steel combined with superior corrosion resistance of the glass.

Our Glass Fused to Steel tanks are available in the full range of colors.

Tanks range from 20 m3 up to 20000m3 - Center Enamel's Glass Fused to Steel tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765: 2011, and our Glass Fused to Steel tanks engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life.

Our Glass Fused to Steel tanks are ideal for fire water, potable town water storage, commercial rainwater harvesting, stormwater detention, treated water storage for the industrial, mining and agriculture sectors.

GLS tanks can be used as vessel for many kinds of water storage, such as the resort wastewater storage, the town wastewater storage, potable water storage, fire protection water storage, rain water storage etc.

Glass Fused to Steel Tanks Specificaitons Coating color dark blue, dark green, white, and customized

A standard steel plate size effective size 2400mm x 1200 m

Steel plates thickness 3mm - 12mm, depends on the diameter & height

Coating thickness 0.25mm - 0.4mm, two coatings internal and external

Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion 3, 450N/cm

Elastic same as steel sheet, around 500KN/mm

Hardness 6.0 Mohs

Service life >30 years

Spark test >1500 V

Permeability gas and liquid impermeable

Easy yo clean smooth, glossy, inert, anti-adhesion

Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds Glass Lined Steel Tanks Advantage: Short construction period, cost-effective tank solution Superior corrosion resistance, service life is more than 30 years Easy to install, no need for big installation equipment and/or very skilled labors Tank volume can be easily expanded It can be dismantled, removed and relocated Elegant appearance, tank color can be customized Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia.

Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc.

international standards.

CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc.

applications.

Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.

The superior product quality and prompt service gain us worldwide recognition.
