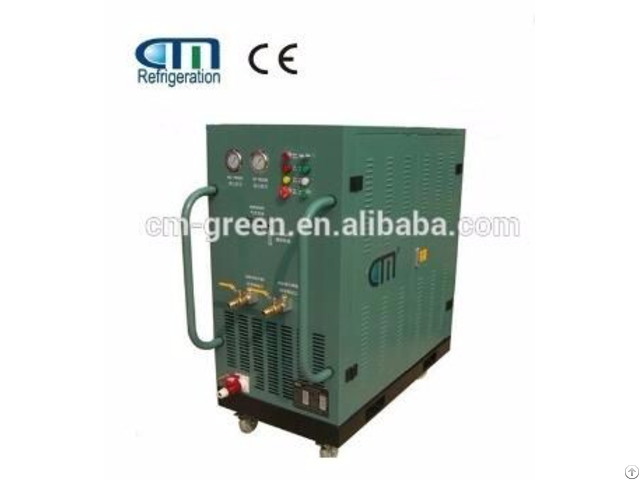

Wfl16 18 Series Refrigerant Recovery Recharging Equipment For Centrifugal Unit - China

Advantages

WFL18 Refrigerant Recovery Machine Performance has become a forefront of the industry and meet ARI-700 standards;

Universal for CFC/HCFC/HFC of medium & low pressure refrigerants;

24-hour continuous working;

No need for special maintenance when recovery different refrigerants, just evacuation.

No cross contamination;

High performance/price ratio - rapid investment return Maintenance is simple.

Application WFL18 Refrigerant Recovery Machine

Transfer refrigerants;

Service chillers & other large & medium cooling systems below 3000 cooling ton;

Large & medium central A/C factories;

On site maintenance of lage & medium HVAC/R products Features WFL18 Refrigerant Recovery Machine

Oil-free lubricating compressor – compatible with CFC/HCFC/HFC refrigerants

Fast recovery recharging rate for both liquid and vapor refrigerants

Multi-function valve design- simple operation in vapor and push/pull recovery

Perfect protection system – safe credibility;

Thorough recovery refrigerant and automatic stop when the suction pressure is up to -0.04Mpa

Easy to operate and convenient to move;

Perfect protection system- safe credibility;

Water/cooled design - Effective heat dissipation

For 3000kg cooling system, finish all the refrigerant recovery within 5 hours; multi-stage refrigerant sub-package station Specification

Model: WFL18 Refrigerant Recovery Machine Compressor: 7.5HP, oil free

Vapor Recovery Rate: ≤6.6lbs/min(180kg/h)


Push/Pull Recovery Rate: ≤330lbs/min(9000kg/h)

Working & Environmental Temp: -10-60°C

Cooling Type: water cooled( air cooled is optional)

Recovery Mode: Vapor & Push/Pull Liquid Recovery

Hose: 3/4" Voltage(optional) 50Hz/3PH/380V 50Hz/3PH/400V

50Hz/3PH/415V 60Hz/3PH/380V

60Hz/3PH/440V 60Hz/3PH/460V Included with Purchase(standard)

Recovery/Recharging/Fi lling system 1set;

Operating manual 1pc

Certification of quality 1pc Optional accessories

1/2" connecting hose(length is customizable)

3/8" connecting hose(length is customizable)

5/8" connecting hose(length is customizable)

3/4" connecting hose(length is customizable)

3/4" to 3/8" adapter

3/4" to 1/4" adapter

3/4" to 5/8" adapter

3/4" filter

Cylinder (20L-1000L) customizable

Float switch for cylinder

( length of power cord is customizable)
