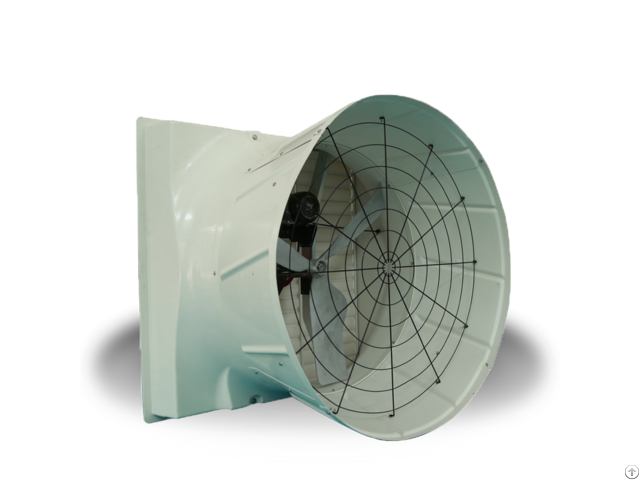

High Efficience Swine Poultry Farm Using Fiberglass Ventilation Fan - China

Gofee high efficience swine poultry farm fiberglass ventilation cone fan chooses high quality material, most advanced equipment, maximum optimized process and high international standard to make every fan, expecting fan to have perfect performance at customer’s work place.

All parts delicately designed, easy for installation and use.

Assembly line for fan lays great importance to energy consumption ratio and cost competitiveness.

Help our customers reduce cost, increase profit.

Do everything we can do to make gofee fan first choice for users in poultry farm industry.

We use high quality anti UV glass fibre, imported resin to guarantee toughness and hardness, inner and outer equally smooth, little wind resistance, anti corrosion, no rust life time.

Shutter is fixed by rotating presser, easy to install or use.

Mould shaping house, cast aluminum blade, stainless steel support, fan strong and durable, long useful life, outstanding performance.

APPLICATIONS

1 - Industrial fields

Textile, socks/clothes making, glass, molding, rubber, coating, silk-screen printing, toy, electronics, home appliances, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.

2 - Civil fields

Net bars, stores, supermarkets, mess hall, food markets, waiting-rooms and recreation places and other occasions with air-conditioning.

3 - Agricultural &horticulture fields

Large farms, greenhouse and livestock farms, etc.

 High performance

 Innovative design

 Corrosion proof

 Explosion proof FEATURES 1 - UV resistant mould shaping glass fiber reinforced fan housing material, corrosion resistant, maintain color and shape.

2 - Die cast aluminum rugged blade according to airflow dynamics design, ensure steady working.

Stall limit configuration prevents motor overload and airflow increase, improve efficiency and save energy.

3 - Air downstream made PVC shutter, stop insect and air counter flow.

Shutter open by air, minimum wind resistant.

4 - Inlet and outlet conforms to airflow dynamics science, maximum high air performance.

5 - Direct driven with high efficiency motor.

6 - Fan with brushless DC motor, with great energy efficiency ratio 30% higher than normal one.

7.0-10V, stepless speed regulation, control and keep fan speed running stable.

8 - Motor is fully enclosed structure, with very high protection level, reliable and long service life.

9 - Fan direct drove by motor, without belt pulley drive, more convenient on maintenance.

10.18” fan housing to be manually formed.

(optional) MAIN PARTS

SHELL

Mould pressing fiberglass BLADE

Cast aluminum alloy or magnesium alloy BASE BRACKET

Aluminum FAN MOTOR

Pure copper coil, IP67, F grade.

BEARING

Peer bearing PVC SHUTTER

Longevity, cleaning, comfort.

PROTECTION GIRD

Painted PRODUCT PARAMETER

MODEL AND PARAMETERS

Item No.

GF-24-AL-Z-MY-ZQ-0.37 GF-36-AL-Z-MY-ZQ-0.37 GF-51-AL-Z-MY-ZQ-0.37

Fan size(inch) 24 36 51

Voltage 380V 50/60Hz

Rated power(W) 370 550 1200

Rated current(A) 1.3 1.54 2.8

Weight(KG) 28 66 90

Rotating speed(rpm) 1400 795 580

Blade diameter(mm) 609 914 1295

Blade qty 4 3 3

Driving mode Direct

Motor IP grade IP67

Fan outer size(WxH)(mm) 800×800 1180×1180 1520×1560

Wall hole size(WxH)(mm) 730×730 1090×1090 1430×1470

* The requested motors are available to be ordered.

STATIC PRESSURE AND AIRFLOW

Product Name 24″ 36″ 51″

Static Pressure Rate Power(kW) 0.37 0.55 1.2

0Pa Airflow(m³/h) 10100 21300 40900 EER((m³/h)/w) 27.8 39.1 49.5

12Pa Airflow(m³/h) 9600 19800 38300 EER((m³/h)/w) 25.8 35.2 43.9

25Pa Airflow(m³/h) 8900 17700 35100 EER((m³/h)/w) 24.1 30.8 39.3

37Pa Airflow(m³/h) 8100 15000 31000 EER((m³/h)/w) 21.4 25.4 33.9

50Pa Airflow(m³/h) 6800 10900 23400 EER((m³/h)/w) 18 18.3 26.4

Bess Project Number Download full 18347 report

Download full 18348 report

Download full 18390 report *These data are part of Bess Lab test report chapter (Full Speed 10v DC)
