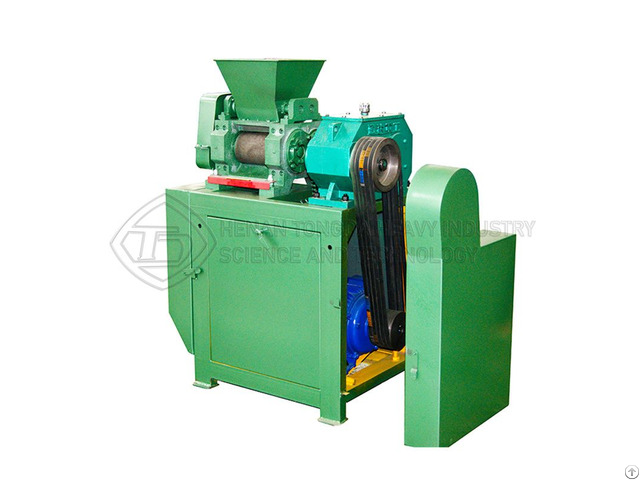

Manufacturers Direct Chicken Manure Fertilizer Making Machine Double Rolloer Pelleting Equipment - China

Product Introduce: This series of roller granulation belongs to extrusion sliding model, whose working principle is: the belt and belt pulley are driven by an electric motor, and transmitted to the drive shaft by reducer, and work in the same direction through the open gear and the passive shaft.

The material is added from the feed hopper, extruded by the roller, demoded and pelleted, and passed through a pair of chains to the crushing screen studio, where the finished product pellets (balls) are screened and separated, and then the material is returned and mixed with new materials for granulation.

With the continuous rotation of the motor and the continuous entry of materials, mass production can be realized.

Features:

1 - The feeding inlet is added mixing device to ensure uniform feeding with uniform speed.

2 - The main frame is equipped with self cleaning device to prevent materials from sticking to the roller sheet.

3 - The adjustment of roller gap adopts step-by-step variable gear adjustment to ensure that the clearance is well proportioned and the operation is convenient.

4 - Adjustment roller sheet adopts adjusting spline inside the gear to ensure the pair is neat and not misplaced.

5 - All the parts connected the materials are made of stainless steel, which can be against corrosion.

6 - Raw materials: Carbon ammonia, urea, ammonium chloride, ammonium phosphate, potassium chloride, magnesium sulfate, sodium chloride, ammonium sulfate and etc.

7 - Before granulating, the water content of the materials needs less than 10%

8 - Temperature of the roller sheet is about 30-40 degrees, so do not need dryer machine

9 - Can be only used or used in the whole production line
