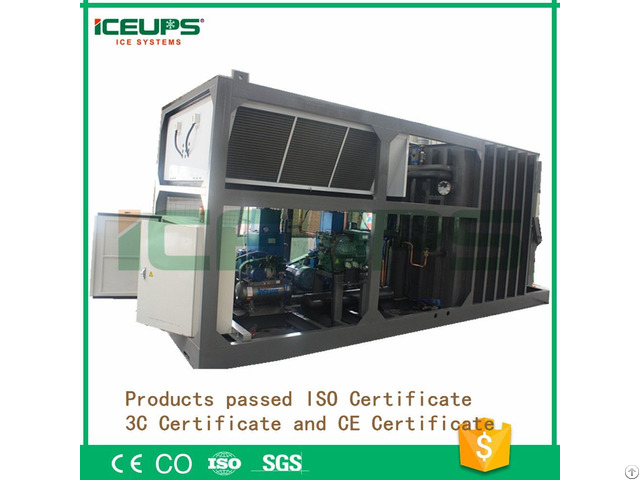

Vegetable Vacuum Cooler Kms-2p - China

No.

Item Description

1 Machine name vacuum cooler

2 Model KMS-2P

3 Processing capacity 1000KG/20-45minutes(accor ding to cool goods)

4 Cooling temperature From 40℃ to 0℃(adjustable)

5 Vacuum chamber (4.62M3)1.4mX1.5mX2.2m


6 Unit dimension L3.9m×W1.966m×H2.608m

7 Installation power 25KW

8 Machine running power 16.5KW

10 Vacuum pump power 7.5KW

11 Air cooling condenser power 1.5KW

12 Power supply 380v-3p-50hz

13 Net Weight 4500kg

14 Max Current 60A

15 Work current 80A or 100A 16 Refrigerant R22

17 Evaporating/Condensing temp.

-15℃/+40℃

18 Max ambient temp.

40℃

19 Compressor type Piston compressor Brand Bitzer power 20HP Qty 1 pcs

20 Vacuum pump Type Rotary vane vacuum pumps Brand Leybold Speed 300m3/h Power 7.5KW/pcs Qty 1 pcs

21 Limited vacuum ≤610Pa

22 The final temperature of vegetable 0~10℃ Main Components brand for 500kg/cycle Vacuum cooling machine：

No.

Item Qty unit Brand Description

1 Vacuum chamber 1 set High quality carbon steel

2 Hypothermia combined with vacuum system 1 set Laybold

3 Refrigeration system 1 set Danfoss

4 Condenser system 1 set Air condenser(Boyi)

5 Evaporator 1 pcs Energy-saving, Evaporating water up to 99%

6 Vacuum door type 1 pcs Q235 carbon steel sliding door or Upward lift door

7 Vacuum Control system 1 set Laybold

8 Vacuum valve 1 set Shenzhen

9 Temperature measuring system 1 set Double temperature detection, made in South Korea LS

10 Pneumatic system 1 set Shenzhen

11 PLC touch control system 1 set Independent research and development of the software, components of Korea LS interface Taiwan PVA

12 Electric control system 1 set Germany Schneider, South Korea LS electric parts Assembly

13 pipeline 1 set Liansuo

14 Machine frame 1 set High quality carbon steel

15 Paint 1 set Epoxy paint We supply Vacuum coolers: 1 - The technical experience of vacuum cooling machine are many years;

2 - We adopt high quality vacuum pump, stable performance and less maintenance;

3 - Vacuum chamber is corrosion resistance processing, baking paint, cover fashion and durable;

4 - The compressor is stepless adjustment and design, high efficiency, energy saving and environmental protection;

5 - It has the unique modified atmosphere gas to prevent the lettuce incision to become red.

6 - It is used the screw compressor, large refrigeration capacity and low failure rate;

7 - Multiple operating modes, you can choose temperature, time and vacuum mode, more practical function;

8 - Vacuum chamber is automatic seamless welding, better pressure resistance;

9 - It has multiple protection, man-machine interface and fault prompt function of error correction;

There are after-sales service from our factory and local agents, convenient and fast.
