Pulp Granule Juice Can Food Filling Machine For Round Square Bottle - China

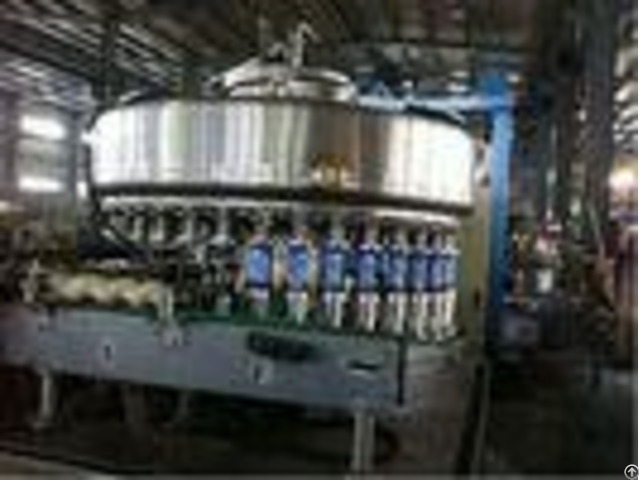

Pulp / Granule Juice Can Food Filling Machine For Round Square Bottle Product Description This machine has washing, filling, capping three functions in one body, total process is automatic.

Bottles are transferred to filling machine through poking bottle star-wheel.

The bottle is hold by neck holding plate after it is in the filling machine.

The filling valve ascends and descends by the action of cam.

It applies pressure filling method.

When filling valve descends and touches bottle jack, it opens and finishes the filling course, when finished, the filling valve ascends and leaves the bottle while the bottle is transferred into capping machine through transition star-wheel that clamps bottle neck.

Main features 1) The machine has compact structure, complete control system, easy operation and high degree automation.

2) To change bottle shape, its only need replace star-wheel, inlet bottle screw and arc guide plate.

3) It applies high speed filling valve, the liquid has precise level and no waste.

That guarantees the demand of filling technology.

4) The capping head applies constant magnetic torque device to secure capping quality and wont damage bottle cap.

5) The machine applies high effect cap arranging system that has complete self control and protective device.

6) The machine is equipped with complete overload protection device that can secure equipment and operator effectively.

7) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting etc.

- - - - Model(RFC-H) | 32-32-8 | 40-40-10 | 50-50-12 | Capacity(BPH) | 12000 | 15000 | 18000 | Suitable to Bottle Shape | Round and Square container Bottle diameter: 50-120mm Bottle Height: 160-320mm | Drive Motor(KW) | 3.92 | 5.87 | 7.87 | Rinsing water Pump Power(KW) | 0.37 | 0.37 | 0.37 | Rinsing Time(s) | 2.4 | 2.4 | 2.4 | Drain Time(s) | 2 | 1.4 | 1.4 | Water Consumption(T/H) | 2 | 3 | 3 | Compressed air Consumption(m/min) | 0.8 | 0.8 | 0.8 | Dimension(L*W*H)mm | 3550*2650*2700 | 4700*3320*2700 | 5900*4150*2700 | - - - - 1 - This automatic beer can filling and sealing machine is used for filling carbonated beverage in cans, such as beer, fruit juice, tea drinks and soft drinks.

2 - This equipment can be used for different material of cans, such as plastic, iron, aluminum and so on, and the different size of cans is allowed.

We can design the equipment according to your requirements.

3 - It is applicable for normal pressure filler and capper of non carbonated drinks in water and beverage industry.

4 - It is a pop canned beer drinking in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.
