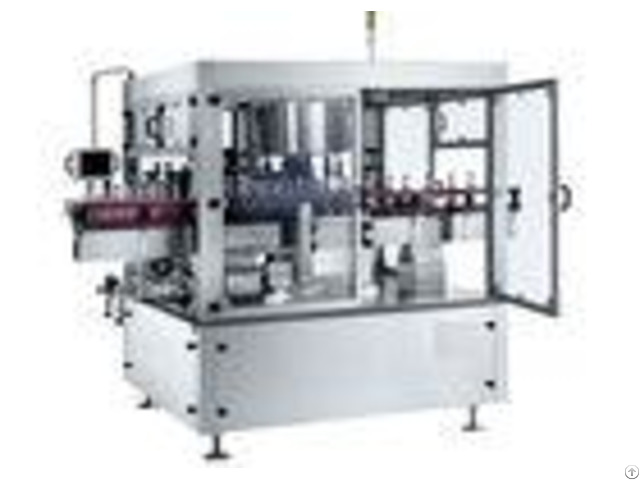

Spc Series Bottle Labeling Equipment Cold Glue For Wine Beer Seasoning - China

SPC Series Bottle Labeling Equipment Cold Glue For Wine Beer Seasoning The fully automatic rotary double stations cold glue labeling machine suits for different industries for beer, white spirit, wine, health wine, seasoning, cosmetics, medicine, cans and others.

It is essential to satisfy the upgrading of the whole production line and improve the production appearance.

1 - Appearance of equipment * Exposed machine components used to manufacture or stainless steel surface treatment spray, anti-corrosion, and looks nice.

* Table baseboard is processed; ensure the surface of table smooth and easy to clean, no dirty.

And the overall appearance is stainless steel frame structure.

2 - Conveyor system * Height of conveyor is 900mm.

* The conveyor is stainless steel chain (the width of chain is 82.6mm, without chain plate), the guide bar is adjustable, not only beautiful but also practical .

The height of side board is 183.8mm and width of conveyor is 110mm.

* For easy to change all changing parts, designed device for disassembling quickly, dont need any tool on the whole 3 - Rotary bottle table * Spoke type bottle table can prevent the accumulation such as water and oil effectively, easy to clean.

* Bottle holding parts is made of polyurethane material, not only wear-resisting but also skid proof.

* U-type cam controls the running of bottle holding parts.

* Rotary table components adopt central lubrication (import oil pump control), Assembling filter on the return pipe.

* With import and special brush, making the label more beautiful and strong.

4 - Labeling machine * The basic principle of labeling station is that its components such as labeling magazine.

Roller, label pallet, gripper cylinder and others stick label on the specified location accurately in concert with each other.

* Process of picking up label and sticking label will be controlled by program, not only quickly but also high accuracy.

* Labeling station with advanced circulating lubrication system and stainless steel glue roller and label pallet can ensure to pick up label steady and save glue and low consumption of label.

Technical Parameter: - - - - Model | HL2C | Main motor power | 5.5kw | Main voltage | 38010% V | Frequency | 50 Hz | Label type | body label, neck label, back label, head label | Suitable bottle type | round bottle, Dia=45~100, H=140~350 | Maximum label width | 135 mm | Adjustable speed range | 1000-13000 bottles/hour | Dimension(length*width*he ight)(mm) | 3225*1925*2120 | Weight | About 5500kg | Compressed air | consumption 0.08M3/min(0.6Mpa;no oil) | - - - - Company Information New branch-Anhui Peiyu Packing Technology Co., Ltd, located at NO.

2588 East Qingliu Road, Suchu Modern Industrial Park, Chuzhou Anhui Province Our Services Installation and commissioning We'll send experienced technicians after the equipments arrived buyer's workshop .

Our technicians 'll guide the installation and commissioning to fulfill designed capability within designed time .

The seller will also offer training including: equipment structure and maintenance, machine control and operation etc .

After-sales service The guarantee period will be 1 year after qualifying the equipment .

After guarantee period, we'll provide technical support and after-sales service for life.
