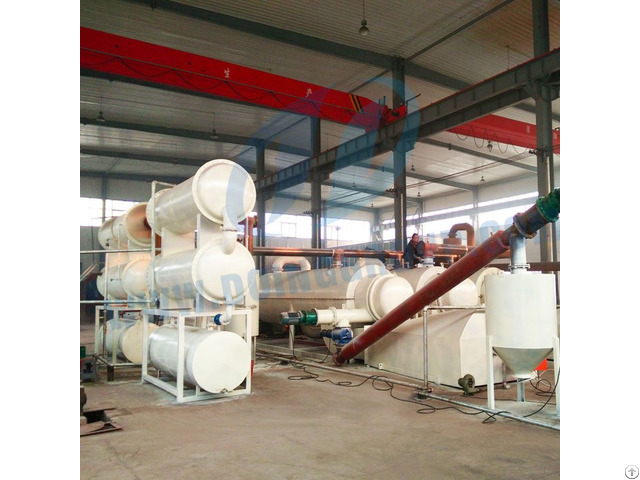

Pyrolysis Oil To Diesel Fuel Distillation Plant - China

Nowadays, everything is evaluated by quality, and no exception for oil.

Although we can get pyrolysis oil from waste tire, rubber or plastic by pyrolysis plant and the oil can be applied to generators, ships and trucks, it seems lots of people would like to pursue higher quality oil, like diesel and gasoline.

Thereby, the pyrolysis oil distillation becomes a very hot and highly profitable green project, which cost low, collect raw material easily and convert pyrolysis oil to diesel or gasoline efficiently (oil recovery rate is about 90%).

The machine uses the green technology to realize the distillation of the crude or waste oil and finally produces the diesel or other oil.

The waste oil mainly includes the recycled engine oil from cars, trucks, etc.

and the pyrolysis oil which is produced by using the pyrolysis technology to process the waste materials, such as waste plastic, waste rubber, waster rubber and oil.

Then the waste oil will be refined in the crude oil distillation machine with the high temperature into diesel.

The products of crude oil distillation are mainly the diesel and gasoline.

In the blink of an eye, many pyrolysis oil distillation plant manufacturers sprung up like bamboo shoots after a spring rain.

Our company, DOING, is proud to be one of the most professional experts in the field.

Having been in this field for a decade, our oil distillation machine adopts highly advanced technology which is featured in increasing 5% oil output, saving 30% fuel consumption, protecting the environment and ensuring 100% safety.

What’s worthy of being mentioned is that the products we have researched are capable of processing both oil refined by pyrolysis equipment and variety of waste oil, such as used engine oil, slag oil, crude oil, raw oil, waste fuel oil and so on.

Here we’d like to introduce more detailed information for you, our distinguished customers.

Working process:

1 - Pump raw material into distillation reactor by oil pump.

Then close the feeding inlet to totally sealed.

(Continuous plant adopts automatic feeding device);

2 - Use coal/wood/natural gas/fuel oil/electricity to heat the reactor, and the liquid oil will slowly become oil gas, which will be liquefied into fuel oil by the cooling pipe and condensers and then go into oil tank.

For getting higher quality diesel, you are required to control the temperature over 150 Celsius degrees.

When the temperature decreases to below 150 Celsius degrees, the gasoline will be cooled out;

3 - Some gases like Methane, Ethane, Propane, Butane cannot be liquefied will be recycled into the furnace for heating the reactor;

4 - It will produce some smoke when fuel materials are burnt.

The smoke will be processed by dedusting system completely;

5 - The exhaust gas will go into the chimney sucked by draft fan, before emission the exhaust gas will become steam, no pollution.

Outstanding Advantages of DOING Pyrolysis Oil Distillation Plant:

• High production yield: the raw material recovery ratio is about 90%.

When the water content is less than 5%, the ratio can even exceed 90%.

• High on-stream efficiency without corrosion, fouling, and coking.

• Auto feeding and slag discharging assists the pyrolysis oil distillation equipment/plant in achieving continuous running for the whole day.

• Featured with environment protection operation tech and devices.

In and after the process, no soil, water or air pollution exists.

• The most cost-effective oil refining to diesel technology in China.

• It is easy for the pyrolysis oil refining machine to clean and maintain with vertical structure.

• The system creates an alternative of energy to replace petroleum products and natural gas.

Technical Characteristics of DOING Oil Distillation Plant:

1 - There is complete equipment equipped for environmental protection, e.g. waste gas burner and flue gas dust collecting room.

2 - Adopt simple chemical method: eliminate the color and peculiar smell of products.

3 - The used or waste oil distillation machine can reduce the waste and solve the oil resource decreasing issues.

4 - The water circulation technology to release the pressure of the device can greatly improve the security of the system, and also the output and quality of the fuel oil.

5 - The waste plastic and tyre oil distillation plant adopts the hot air heating technology for the heating system, which can guarantee the safety of system and increase the heating efficiency.

Our services include:

1 - Design the layout drawings according to the site of customers.

2 - For each set of pyrolysis oil distillation plant, one engineer will be sent to complete the installation, test the machine and train the workers.

3 - We guarantee for you with lifelong maintenance at all times.

Engineers are available to serve at any time within one year warranty.

4 - After-service department will give periodical call visit to make sure there is no problem of the equipment or find the problem timely and solve it immediately.
