Advertising Cnc Router Engraving Machine - China

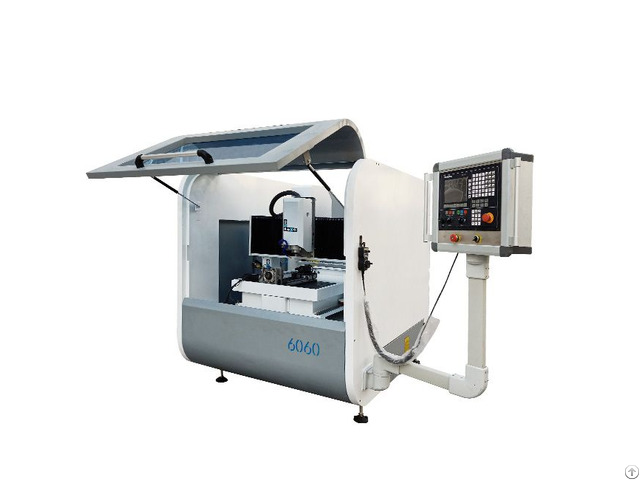

6060 Advertising CNC Router Engraving Machine/6060 Mini CNC Router Small 6060 CNC router with 24 x 24 inch movable working table.

And this type of small 6060 CNC router is Suitable for diverse and flexible processing, effectively improving processing efficiency.

This 6060 advertising cnc router engraving machine adopt XYZ all Taiwan TBI ballscrew transmission and table moving type, so ensure the machine working high precision, can up to 0.01-0.02mm/300mm.

In addition, the 6060 mini CNC router have the casting iron table, it suitable working for metal and aluminum, like carving, cutting, drilling, milling.

Of course, it also can do wood, mdf, acrylic, plastic, etc material.

Now the cnc router in promotion, if order over 2 sets, can get our agent price.

6060 mini CNC router application:

Advertising industury: Cnc router can engrave all kinds of signage, logo products, trademarks, nameplates, badges, decorative gift, embossed

medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards

(drilling and engraving), Double color boards, acrylic etc.

Woodworking Industry: Cnc router can be used for solid wood furniture, mahogany furniture, MDF paint doors, solid wood doors, composite doors, cupboard doors and windows, beside

cabinets, folding screen etc.

Features of 6060 mini CNC router:

Delivery: Light Frame and easy to pack and ship

DSP A11 Control system: Easy operating system with handle

Table moving: much more precise than gantry moving, much better finished wooden figures by table moving

Water mist cooling sprayer with water tank: very suitable for processing soft metal, like aluminum, copper, etc.

Changsheng water cooling spindle This machine adopts Changsheng water cooling spindle, which uses the water circulation to cool the heat generated after the spindle rotates at high speed.

This cooling method has the advantages of good cooling effect, low noise, long service life and high accuracy.

This machine adopts a DSP A 11 control system and uses the handle to manually control the movement of the engraving machine without occupying a separate computer, which greatly reduces the space occupied by the equipment.

In addition, the tool setting is more convenient and the operation is simple.

This control method has the advantages of low cost, simple operation and convenient operation.

This machine uses Fuling inverter.

This inverter has stable performance, rich combination of functions, high-performance vector control technology, low-speed and high-torque output, good dynamic characteristics and super overload capacity.

Parameter Configuration Description Parameters

Working area 600*600*120mm

Transmission Germany ball screw

Table structure T Slot

Spindle power 1.5KW

Spindle speed 24000rpm/min

Travelling speed 10m/min

Working speed 8m/min

Working Delicacy 0.02mm

Driving Motor Stepper

Controller Ncstudio system

Command Code G Code*.

u00*.

mmg*.

plt

Voltage AC220V/50HZ

Software Artcam/Type3, other CAD/CAM Advantage of 6060 mini CNC router:

1 - CE certificated, our 6060 CNC router meet the Germany TUV standard.

2 - Frequency converter has been built-in, it is more convenient for user.

3 - The board of 4th rotary axis has been built-in in advance, if customer want to upgrade 3 axis machine into 4 axis machine, just need add the 4th rotary device.

4 - There is filter to ensure the stability of pulse signal.

5 - The engraving materials, 6040 mini CNC can engrave wood, plastic, acrylic and soft metal like aluminum and copper.
