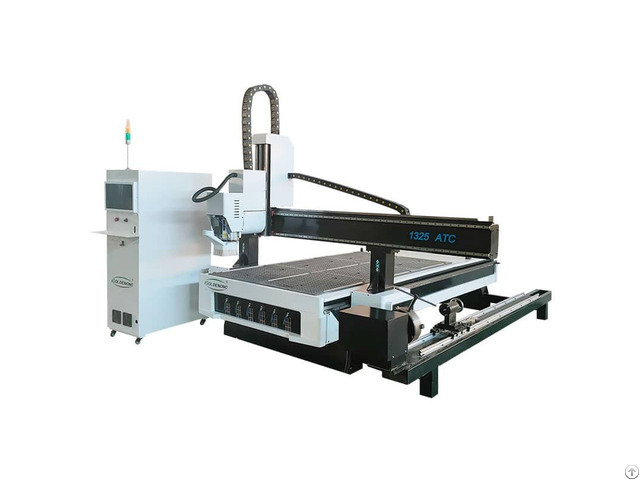

Hot Sale 4 Axis Foam Cutting Machine With Rotary - China

Hot Sale 4 Axis Foam Cutting Machine With Rotary Products Description

igoldencnc offers well designed and easy to use 4 axis foam cutting machines.

In little time you can be designing and producing parts in the quantity you need when you need them.

Our CNC machines increase your productivity and design capability allowing you to expand into larger projects and new markets.

The 4 axis foam cutting machine is used for cutting many multi-pieces foam blocks on the worktable into slices at the same time, adopt fully automatic digital control, and setting the number based on requirements of the need cutting thickness and foam density by control box.

The worktable is working automatically and the turning speed can be adjustable.

Continuously cutting, the production efficiency is very high ( worktable also can be chosen with the vacuum system).

Features of foam cutting machine:

1 - The foam cutting machine’ body is strong, rigid, high precision, reliable and durable.

2 - Imported high precision ball screw gap, smooth movement .

3 - foam cutting machine using well-known brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.

4 - High-performance driven motor to ensure that the machines high speed and accuracy.

5 - Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.

6 - Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.

7 - Compatibility, compatible Type3/ Artcam, and so on a variety of CAD/CAM design software.

4 axis foam cutting machine with rotary configurations: 1) DSP control system: Popular and easy operation, with USB port to transfer program; 2) Italian HSD Air-cooling Spindle: Long working life, easy maintenance; 3) Big Stepper Driving Moto: With highly control precision and high speed, reliable and stable; 4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement; 5) Taiwan TBI ball screw: linear motion with high precision and and in high speed 6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.

7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well; 4 axis foam cutting machine application

1) Furniture: cabinets, plate, office and wood furniture, tables, chair, doors and windows.

2) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

3) Plate processing: plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

4)Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Parameter Configuration Working table effective cutting size 1300mm X 1300mm X 3000mm

X-axis cutting stroke 3000mm

Y axis travel 1300mm

System resolution ± 0.04

Cutting accuracy ± 1mm (electric heating wire material, environment, dry humidity of foam, etc.

)

File format G code

Worktable structure Thickened square tube welding

Working voltage AC220V / 20HZ

Transmission mode rack drive Advantages of foam cutting machine: Welded structure by thick profiled steel, Assembled with precise parts.

Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.

Imported SYNTEC high performance control system, separated keyboard control, color LCD display.

Furniture: wooden doors, cabinets, computer tables, sewing machine, musical instruments

Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture

Decoration industry: acrylic, PVC, MDF, artificial stone, plexi-glass, plastic, and copper and aluminum and other soft metal plate engraving and milling cutting.

Sample display:

Company Contact:

• Posted By: IGOLDENCNC

• Phone: 18660188728

• Address: Yu Huang Miao, Shanghe , employment , China

• Email:

• Website: https://www.igoldencnc.com/

• Business Description: We are a company integrating manufacturing and sales of CNC routers, laser engraving machines, laser cutting machines, plasma cutting machines, cutting plotters, etc.

  The main configuration all adopt top parts imported from Italy, Japan, Germany, etc.

  We adopt international advanced producing technologies to improve our products.

  Our products are widely used in advertising, woodworking, artworks, model, electric, CAD/CAM industry models, clothing, package printing, marking, laser sealing and so on.

  Our company adheres to the Market-Oriented business principles, and implements the business philosophy of "Quality First and Customer First".

  We have set up more than 20 sale and service departments around China which can offer our customers the services of design, fixing, training, maintenance and so on.

  Besides sale in China, our products exports around the world including the Middle East, Africa, Europe and the USA.
