Da 7 A2 Multifunction Electric Icu Bed - China

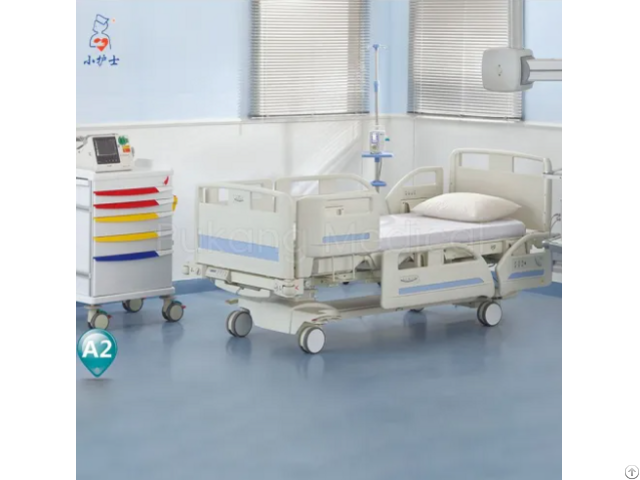

Multifunction Electric ICU Bed from pukang

The pukang multifunction electric ICU bed is designed to provide optimal care and comfort to ICU patients.

Our team of medical equipment research experts has integrated cutting-edge global concepts into the design and functionality of this bed.

Product Name: Type A2 Multifunction Electric ICU Bed Multifunction Electric ICU Bed Technical Features

Outer dimensions (Side rails up) L2235*W1050mm(±10mm)

Bed height H540-940mm(±10mm)

Bed extension 200mm(±10mm)

Maximum backrest 0-70°

Maximum knee rest 0-30°

TR/ATR 0-12°

Safe working load 240kg Multifunction Electric ICU Bed Electric Parameters

Power supply 100V/240V, 50HZ / 60HZ

Maximum input 960VA

Protection against water and dust IP54

Equipment classification Class II

Level of protection against injury from electrical current

Applied part type BF Electric motor operation mode (load factor) 10%, max2min/18min

pukang Certificates

Pukang Medical is certified according to European norms and quality system: EN ISO 9001: 2008, EN ISO 13485: 2003 EN ISO14001: 2005 Products are manufactured according to European norms for medical technology and hospital beds EN 60601-1, EN60601-1-2, EN ISO 14971, 93/42/EEC, 90/384/EEC EN60601-2-52: 2009 Multifunction Electric ICU Bed Standard Configuration

1 - Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls and the 2 pcs additional side rails near foot board offer more safety service and also provide the support during patient’s stand.

2 - Integrated Scales system: The in-bed scales control panel located under the foot end is protected against impacts.

3 - Removable Mattress Platform: The Mattress platform is plastic boards which can be easy removable and easy for sterilization.

The mattress platform can do X-ray for back board and offer the patient’s more comfortable.

4 - Central Nurse Control System: The nurse or supervisor can adjust all the positions and find the comfortable and proper positions for the patients.

5 - Columns Motor System: Electric lifting units in two columns enable the mattress platform height adjustment and TR&ATR positions, which can also ensure the bed’s stability.

6 - Controls In The Side Rails: Controls in the side rails increase the patient’s independence so that the patients can operate it according to the self-requirement.

7 - Linen Shelf: The linen shelf at the bottom of foot end also stores the supervisor panel.

8 - H/F Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.

9 - X-Ray Cassette Holder: The holder’s special sliding construction allows the cassette to be comfortably inserted beneath the mattress platform from the side of the bed.

10 - Manual/Electric CPR: The electric CPR is easy and convenience to operate that is one key control.

And the manual CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.

11 - Standing armrest: (option)

12 - Night light: (option) Company Advantages

Advanced Technology: It has more than 130 patents and independent intellectual property rights, has established cooperative relationships with scientific research institutes, industry experts, tertiary hospitals, and innovative enterprises, and has mastered the core technology of ICU bed research and development, and is always at the forefront of the medical industry.

Respond Promptly: We have dedicated customer service channels to promptly respond to user inquiries and feedback.

Provide targeted solutions to your problems, minimizing downtime and maximizing patient care.

Excellent Service: Provide training support and after-sales service support.

Includes product usage guidance, technical support, troubleshooting assistance and any other support needed to ensure the smooth operation of your multifunctional electric ICU bed.

Global Influence: Our multifunctional electric ICU beds and other products have emerged in more than 6, 000 hospitals across the country.

It has been recognized by more than 110 countries and regions around the world.

We also welcome you to join us.

Experience the future of ICU care with the Multifunction Electric ICU Bed by Hebei Pukang Medical Instruments Co., Ltd. Join the growing number of medical professionals who rely on our innovative solutions to deliver exceptional patient care.

Contact us today to learn more about our product and how it can revolutionize your ICU department.
